Universal AC 1140V Moulded Case Circuit Breaker

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number DW15
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Moulded Case Circuit Breaker Frequency AC 50Hz
Rated Voltage AC 380V To AC 1140V Rated Current 630~4000A
Standard GB 14048.2 IEC60947-2 Type Universal
Leave a Message
Product Description

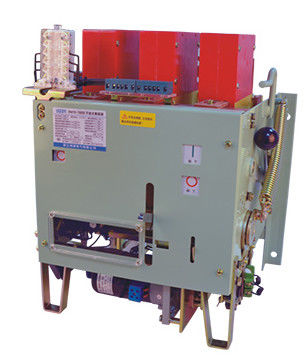

Universal AC 1140V Moulded Case Circuit Breaker



Introduction



DW15 series universal circuit breaker (hereinafter referred to as circuit breaker) is suitable for AC 50Hz, rated current to 630~4000A, rated
It is used in the distribution network of working voltage AC 380V to AC 1140V to distribute electrical energy and
Load, under voltage, short circuit protection. Can also be used to protect the motor from overload and under-current in AC 50Hz, 380V grid
Voltage and short circuit.
The circuit breaker can be used for infrequent conversion of the line under normal conditions, and can also be used as a non-motor in normal conditions.
For frequent starting, the circuit-breaker with rated current of 630A in the shell frame also has a drawer structure and a current-limiting circuit breaker.
Due to the current-limiting characteristics, current-limiting circuit breakers are particularly suitable for networks where large short-circuit currents may occur.



Name: Moulded Case Circuit Breaker Frequency: AC 50Hz
Rated Voltage: AC 380V To AC 1140V Rated Current: 630~4000A
Standard: GB 14048.2 IEC60947-2 Type: Universal



Feature



The O circuit breaker is a three-dimensional layout, and the contact system, fast electromagnet, and left and right side panels are all installed on an insulating board.
O The left side is equipped with a shunt release, and the back is equipped with an undervoltage release connected to the trip half-shaft.
O three-dimensional layout, contact system and operating mechanism are installed on the iron frame.
O. There is an arc extinguishing system on the upper part and an operating mechanism on the right.
O circuit breaker body and drawer seat; the drawer seat is composed of left and right side plates, aluminum bracket, isolation contact seat, secondary circuit static contact, sliding frame, etc.
O The circuit breaker body is equipped with isolation contacts, secondary circuit moving contacts, grounding contact support rails, etc.



Normal working conditions and installation conditions



1. The ambient air temperature is-5 °C ~ +40 °C, the average value of 24h does not exceed +35C.
2. The altitude of the installation site does not exceed 2000m.
3. The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40C; at a lower temperature, it can have a higher relative
Humidity; The average monthly maximum humidity of the wettest month is 90%. At the same time, the average minimum temperature for the month is +25°C, taking into account the
Temperature changes occur in the condensation on the product surface.
4. Pollution level is three
5. Installation category 1 of rated operating voltage 1140V circuit breaker. The installation category of circuit breakers with a rated working voltage of 380V and below is
IV, the auxiliary circuit installation category except the undervoltage instantaneous release coil, the primary coil of the power transformer for undervoltage delay and open circuit
Except for the same device, the rest are Il.
6. The vertical inclination of the circuit breaker installation does not exceed 5.
