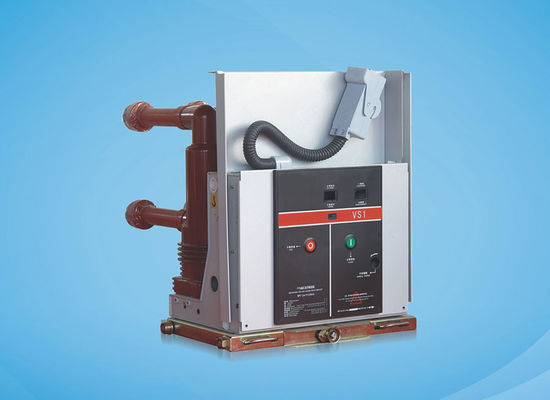

High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator

China High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator supplier
High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator supplier High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator supplier

Large Image :  High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: ISO
Model Number: ZN63(VS1)-24/630A-1600A

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Packaging Details: WOODENS
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000/MONTH
Contact Now
Detailed Product Description
Rate Voltage: 24kV Frequency Voltage: 65kV
Rate Power: 50Hz Rate Current: 630A-1600A
Life: 20000 Times Opration Power: AC/DC 220V/110V

     24kV high votage Indoor Vacuum Circuit Breaker with 24kV Switchgear Equipment



Description







VS1-24 circuit breaker(with permanent magnet actuator) using vacuum arc extinguishing chamber, vacuum as arc extinguishing and insulation medium, arc extinguishing chamber has very high truth







VS1-24VS1-24 Vacuum circuit breaker, voids, when the contact and static contacts are electrically divided under the action of the actuating mechanism, a vacuum arc will be generated between the contacts, and due to the special structure of the contact, an appropriate longitudinal magnetic field will be generated in the contact gap, which will cause the vacuum arc to remain diffusible and will spread evenly over the contact surface, maintaining a low arc voltage when the current is natural, The residual ion, electron and metal steam can be combined or assembled on the contact surface and shield over an order of magnitude of a microsecond, and the dielectric insulation of the interrupter break is quickly restored, resulting in the arc being extinguished and broken. As the vacuum breaker uses a magnetic field to control the vacuum arc, it has a strong and stable ability to break current.





Item Technical data
Rated voltage (KV)       24
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)       68
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)       125
Closing Power AC/DC 220V/110V
Life ≥2000

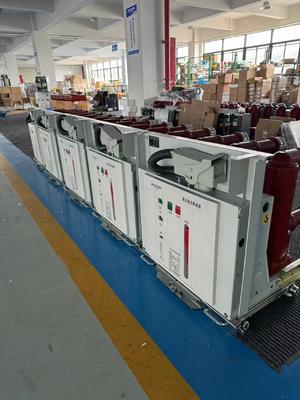

      High Votage Indoor Vacuum 3 Phase Circuit Breaker With Permanent Magnet Actuator
