JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure

China JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure supplier
JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure supplier JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure supplier

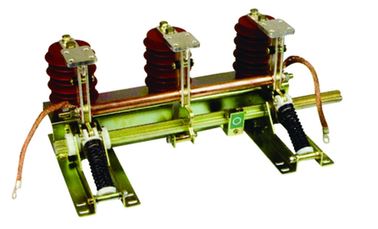

Large Image :  JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: ISO
Model Number: JN5-12/31.5kA-210mm

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: Carton/Wooden
Delivery Time: 6 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS/Month
Contact Now
Detailed Product Description
Rate Voltage: 12kV Frequency Voltage: 42kV
Space Dsitance: 165mm-275mm Space Current: 31.5kA-40kA
Lenth: 655mm

JN15-12/31.5kA-210 Earthing Switch with High Voltage Switchgear





The maximum rated current is only 630A, and the circuit breaker can reach 3000A above(there are more than 4000A in foreign countries). The maximum rated current is only 630A, and the circuit breaker can reach 3000A or above(there are currently more than 4000A in foreign countries). The circuit breaker is usually short-circuit-protected. In case of overload, it takes a certain time(and can not be adjusted unless the internal fuse is replaced) to cut off the hot fuse of the internal fuse of the circuit, and the inner voltage switch is used to protect the overload of the device Or sulphur hexafluoride load switch.





1. JN15-12 Indoor High Voltage Eartihng switch's performance is fit the bill GB1985-89< AC voltage load brekaer switch and earthing switch > and IEC129 .

2. Lend itself to 12kV voltage 50HZ power system .

3. Fit with so many types high voltage switchgear equipments , use to protect epuipment .

4. Simple structure , easy to install .

5. Altitude is after 1000M .

6. Temperature is from 400 degree to -100 degree .



Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Local discharge (pc)
Dispute bend (N)


JN15-12/31.5kA-210mm High Voltage Earthing Switch / Ground Switch Simple Structure
