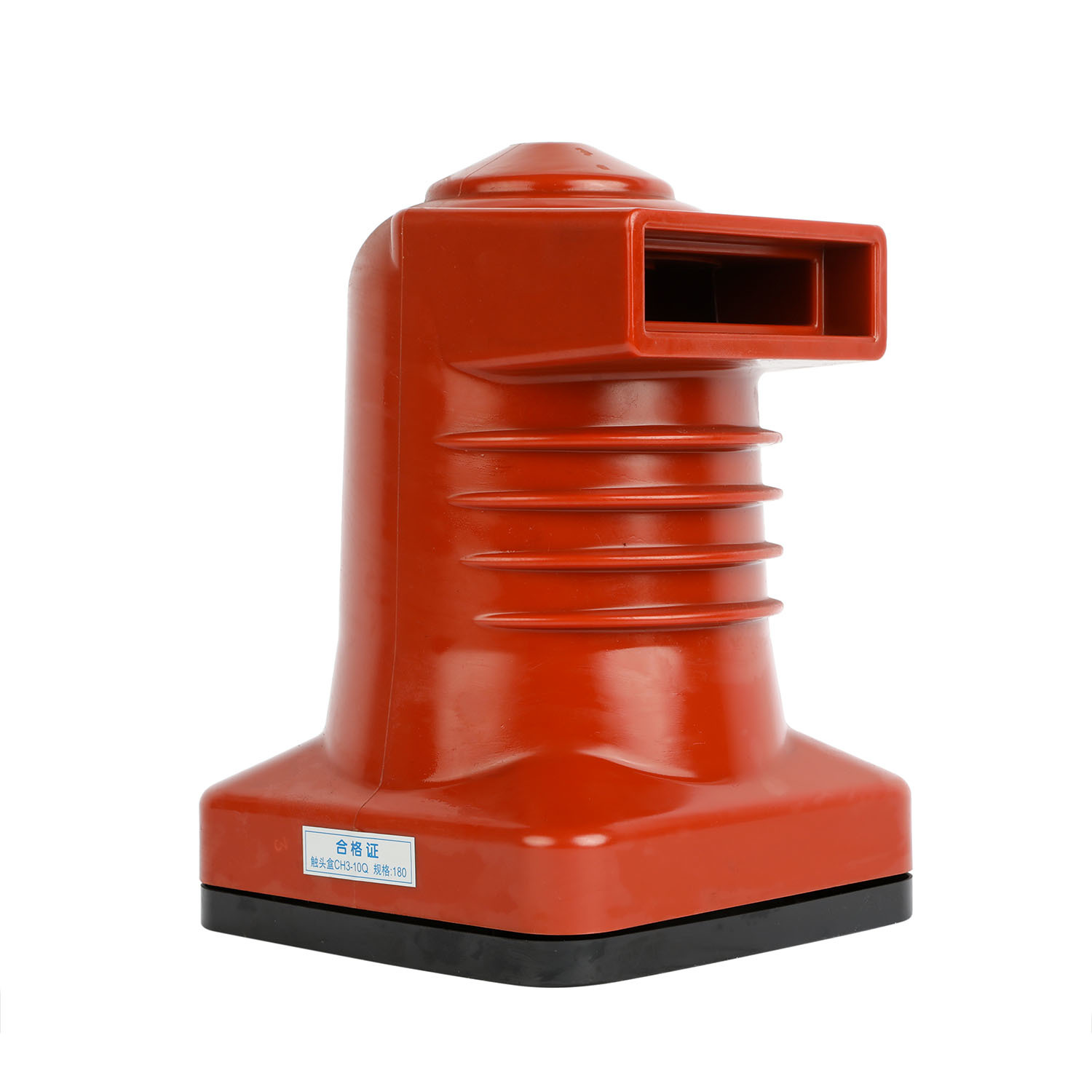

1250A 10kV Epoxy Resin Electrical Box Bushing , Switch Cabinet Cast Resin Insulator

China 1250A 10kV Epoxy Resin Electrical Box Bushing , Switch Cabinet Cast Resin Insulator supplier
1250A 10kV Epoxy Resin Electrical Box Bushing , Switch Cabinet Cast Resin Insulator supplier 1250A 10kV Epoxy Resin Electrical Box Bushing , Switch Cabinet Cast Resin Insulator supplier

Large Image :  1250A 10kV Epoxy Resin Electrical Box Bushing , Switch Cabinet Cast Resin Insulator

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: CHN3-10Q/176 1250A

Payment & Shipping Terms:

Minimum Order Quantity: 120PCS
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Material: Casting Resin , Epoxy Resin Rate Voltage: 12 KV
Frequency Voltage: 42 KV Current: 1250A
Creepage Distance: 240mm Flexural Strength: 8 KN
Color: Red/Brown

CHN3-12Q/176 1250A 10kV Epoxy Resin Insulators Contactor Box Spolt Bushings







The automatic pressure gel technology(APG) of liquid epoxy resin is a kind of pressure gel technology(PG), which is developed on the basis of vacuum casting technology of epoxy resin. Pressure gel process(PG) is a technology developed by Ciba-Geogy in Switzerland in 1957. In the early seventies, PG technology was further integrated and an automatic pressure gel(APG) technology was developed.





APG technology is suitable for liquid epoxy resin, unsaturated polyester resin, polyurethane resin and organic silicone resin, but in the electrical, electrical and electronic industry, a large number of applications are liquid epoxy resin.Through the cabinet drive mechanism and circuit breaker chassis car to achieve the electrical operation of the "five-prevention" function. Under some new electrical conditions and operation mode, the part of "five-guard" function in the cabinet can not meet the requirements, and the "five-guard" function must be improved.





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)

2 Reactance Insulators(140*320) 40.5 50 98 ≤10 >810 ≥10 185
3 Contactor box (1250A) 12 50 45 ≤10 >240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 >240 ≥8 80
5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185
