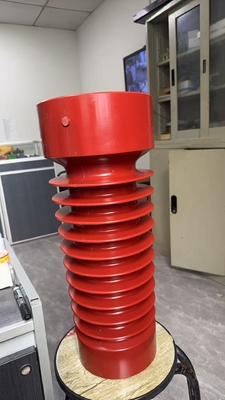

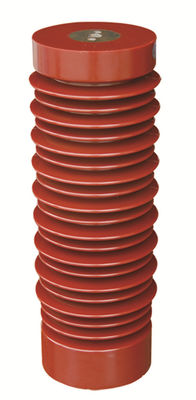

Indoor Epoxy Resin Support Insulator , Epoxy Cast Resin Post Insulator 125X390mm

China Indoor Epoxy Resin Support Insulator , Epoxy Cast Resin Post Insulator 125X390mm supplier

Large Image :  Indoor Epoxy Resin Support Insulator , Epoxy Cast Resin Post Insulator 125X390mm

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: ZN8-40.5/125X390

Payment & Shipping Terms:

Minimum Order Quantity: 60PCS
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 10000 PCS/Month
Contact Now
Detailed Product Description
Color: Red Material: Casting Resin
Rate Voltage: 40.5kV Frequency Voltage: 100kV
Creepage Distance: 800mm Flexural Strength: 10 KN
Dia: 125mm Higth: 390mm

ZN8-40.5kV/125X390 Epoxy Resin Support Insulators with High Voltage Switchgear





1. Epoxy resin pressure gel molding machine APG equipment factory produced by the epoxy resin molding machine good functioning, low noise, electricity consumption
Epoxy resin molding machine is a special pressure gel equipment which produces the product of the finished edge, casing, contact box, Transformer, etc.


2. The following models are available: epoxy resin molding machine 868-V, heating plate 800 x 650mm, epoxy resin molding machine 888-V, heating plate 800 x 800mm, epoxy resin molding machine 10108-V heating plate 1000 X 1000mm, epoxy resin molding machine 858-2V heating plate 800 x 500MM, epoxy resin molding machine is our factory through many years of practical experience and improved design, and the pressure of epoxy resin molding machine has been verified by customers for many years To date, a complete series of epoxy pressure molding machines have been developedTo date, a complete series has been developed. The pressure molding machine of epoxy resin adopts PTL C, which is more humane, and has the following characteristics in comparison with the domestic products:



Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(125*390) 40.5 50 98 ≤10 >810 ≥10 185
2 Reactance Insulators(125*390) 40.5 50 98 ≤10 >810 ≥10 185
3
5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185
