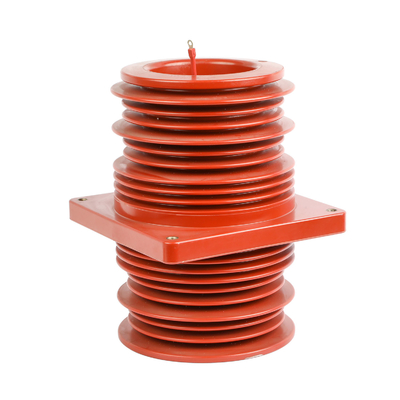

Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage

China Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage supplier
Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage supplier Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage supplier Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage supplier

Large Image :  Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: TG6-36Q/*260*260

Payment & Shipping Terms:

Minimum Order Quantity: 6
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000 PCS/Month
Contact Now
Detailed Product Description
Color: Red Material: Casting Resin
Rate Voltage: 40.5kV Frequency Voltage: 100kV
Creepage Distance: 810mm Flexural Strength: 10 KN
Current: 630A-4000A Busbar: 40*133MM

TG6-36Q 40.5kV Epoxy Resin Shield Spolt Bushings with KYN61 Switchgear



1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



2. In pouring, pouring material is the key. It has a great influence on the reliability and stability of cemented pole. For example, Xiamen Huazhong Electric Switching Co., Ltd. uses the resin materials of Vantico, Switzerland, and adopts different formulas according to different current, etc. to meet different working conditions .



3. The APG process includes three processes: pre-mixing, automatic pressure gel, and solidification after molding.



4. Applicable system: 35 KV or below voltage level of the ground, small resistance grounding, arc coil grounding, direct grounding system;
Protection range: not only can be used for line protection, such as line protection, but also can be used for, PT, main change reserve protection, motor, capacitor, reactor protection .





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1

5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185

    Epoxy Resin Wall Through Insulating Bushing For Transformer 40.5kV High Voltage
