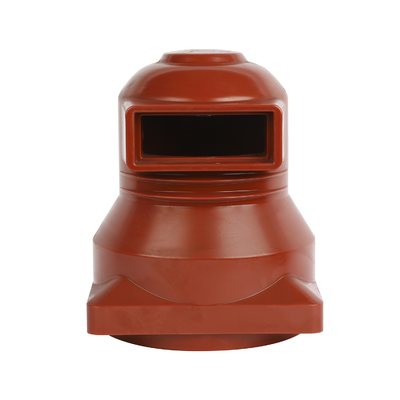

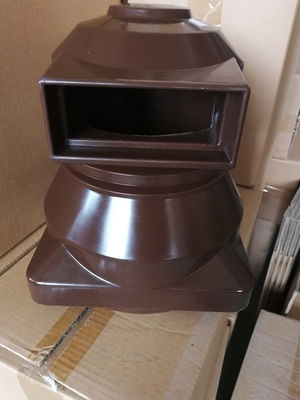

Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV

China Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV supplier
Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV supplier Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV supplier Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV supplier

Large Image :  Medium / High Voltage Epoxy Resin Insulator Switchgear Components 3150A 12 KV

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: CHN3-12Q/250 3150A

Payment & Shipping Terms:

Minimum Order Quantity: 60PCS
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Material: Casting Resin , Epoxy Resin Rate Voltage: 12 KV
Frequency Voltage: 42 KV Current: 3150A
Creepage Distance: 240mm Flexural Strength: 10 KN
Color: Red/Brown Craft Work: APG

CHN3-12Q/250 3150A 10kV Casting Resin Insulators Spolt Bushings with KYN28 Switchgear





Description







1.  We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .

2. The contact box is the pressure gel molding structure of epoxy resin APG process, which is used for various kinds of handcart type switchgear, acting as insulation isolation and connection transition.
3. The contact box is formalised by ecoxy with APG technologies, it is used for integration and conversion of various switch trucks.

4. The maximum rated current is only 630A, and the circuit breaker can reach 3000A above(there are more than 4000A in foreign countries). The maximum rated current is only 630A, and the circuit breaker can reach 3000A or above(there are currently more than 4000A in foreign countries). The circuit breaker is usually short-circuit-protected. In case of overload, it takes a certain time(and can not be adjusted unless the internal fuse is replaced) to cut off the hot fuse of the internal fuse of the circuit, and the inner voltage switch is used to protect the overload of the device Or sulphur hexafluoride load switch.





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)

3 Contactor box (1250A) 12 50 45 ≤10 >240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 >240 ≥8 80
5
