2 Way Condensation Temperature And Humidity Controller Insulation Resistance

China 2 Way Condensation Temperature And Humidity Controller Insulation Resistance supplier
2 Way Condensation Temperature And Humidity Controller Insulation Resistance supplier 2 Way Condensation Temperature And Humidity Controller Insulation Resistance supplier

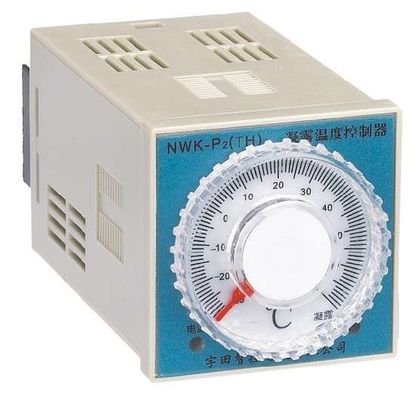

Large Image :  2 Way Condensation Temperature And Humidity Controller Insulation Resistance

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: N2WK-2P

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Packaging Details: Cartons
Delivery Time: 5 Days
Payment Terms: T/T, Western Union
Supply Ability: 500000 PCS/Months
Contact Now
Detailed Product Description
Material: Plastic Type: N2WK-2P
Rated Current: 15A Work Voltage: 220V

N2WK-2P Temperature and Humidity Controller with Indoor High Voltage KYN28-12 Switchgear Equipment

Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)
Local discharge (pc)
Power 15W


     2 Way Condensation Temperature And Humidity Controller Insulation Resistance



Technical parameters
Indicators
type
Heating up
Starting at 5 ℃, stopping at 13 ℃
Winds cool
Start at 40 ℃, stop at 35 ℃
Heat and dehumidify
Start at 85 %, stop at 77 %
precision
Temperature: ± 3 ℃ Humidity: ± 5 % RH
Contact Capacity
5 A/AC250V(passive contacts)
Auxiliary power supply
AC85 ~ 265 V DC 100 ~ 350 V, power consumption is un3VA
Insulation resistance
Less than 100M Omega
Frequency and pressure resistance
2 kV/1 min(AC, RMS) with power and housing to touch metal parts / power and other terminals
Average fail-safe working hours
Less than 50,000 hours
work environment
temperature
-10 °C ~ + 55 °C
humidity
Wa 95 % RH, non-leavened, non-corrosive gas
elevation
< 2500 M
