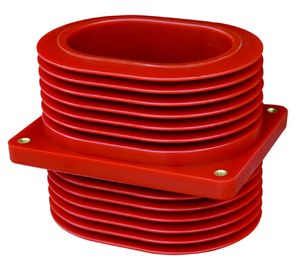

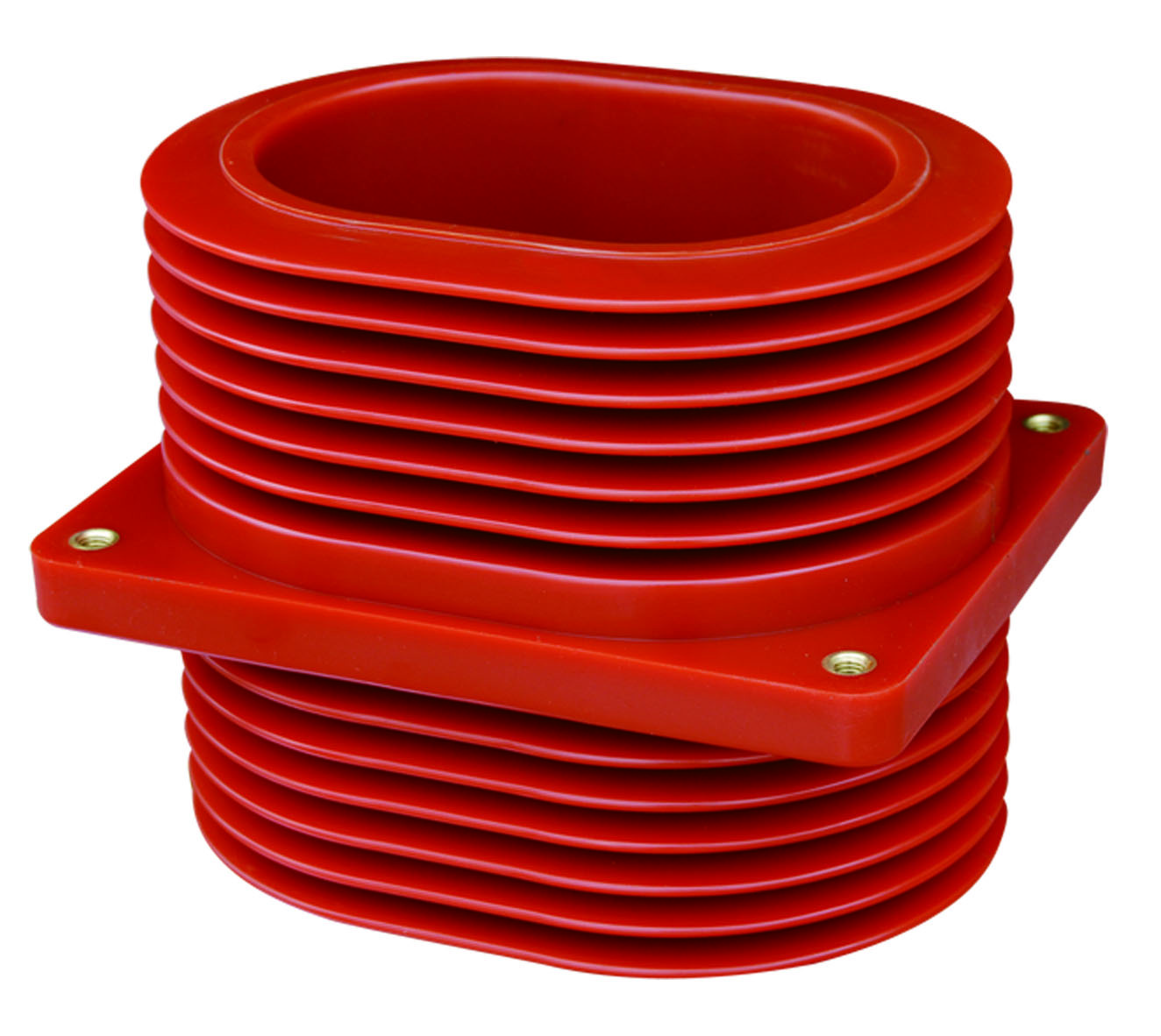

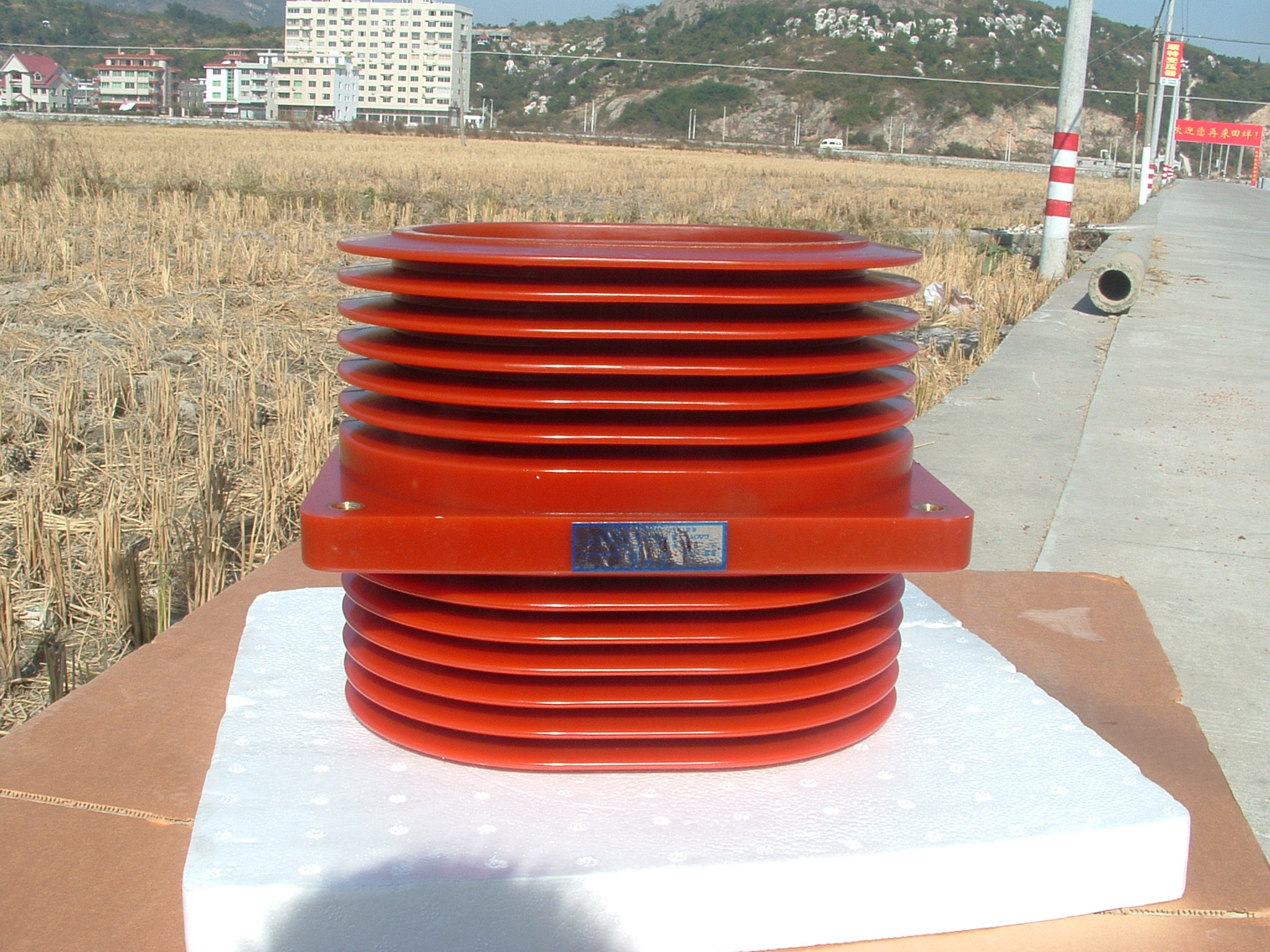

Reliable Epoxy Resin Cast Bushing , 24kV Busbar Wall Through Bushing

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number TG3-24kV/175*235*278
Minimum Order Quantity 100 PCS
Packaging Details CARTONS
Delivery Time 5 Days
Payment Terms T/T, Western Union
Supply Ability 10000PCS/MONTHS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Epoxy Resin/Casting Resin Color Red
Rated Voltage 24kV Frequency Voltage 68kV
Creepage Distance 280mm Higth 278mm
Strength 10kN
High Light

wall bushing insulators

,

wall through bushing

Leave a Message
Product Description

TG5-24kV/175*235*278 Casting Resin insulator Spout Wall Bushing with KYN28-24 Switchgear



The casing can be divided into five types according to the place of use: indoor common type, outdoor common type, outdoor type, outdoor type, outdoor-indoor high prototype and outdoor type.
The common type is generally suitable for the installation site within 1000 M above sea level.
The common type of outdoor home is generally suitable for the area with an installation site not exceeding 1000M above sea level, but the installation site should be a no-obvious area.
The outdoor indoor anti-fouling type is suitable for installation site not exceeding 1000M above sea level. For severe and heavy fouling area, 63kV oil paper capacitive perforating wall casing can be used.
The outdoor high prototype is suitable for the installation site below 3000 M.
An outdoor interior plateau anti-fouling type is suitable for the installation of the site below 3000m above sea level in the filthy area.
The casing can be divided into three types: aluminum conductor, copper conductor and non conductor(busbar type) according to the conductor material used .



Current Bus-bar
630A 90*20
1250A 135*25
