JDZW Outdoor Power System Cast Resin Transformer High Voltage 50Hz / 60Hz

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number JDZW
Minimum Order Quantity 50PCS
Packaging Details Cartons/Woodens
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 50000PCS/Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Casting Resin/Epoxy Resin Insulation Level 12/42/75kV , 40.5/95/200kV
Rated Power 50Hz/60Hz Temperature -40degree - 40 Degree
Rate Voltage Ratio 3000/100 , 35000/100 Accuracy Class 0.2/0.5/1
High Light

resin cast current transformer

,

zero sequence current transformer

Leave a Message
Product Description

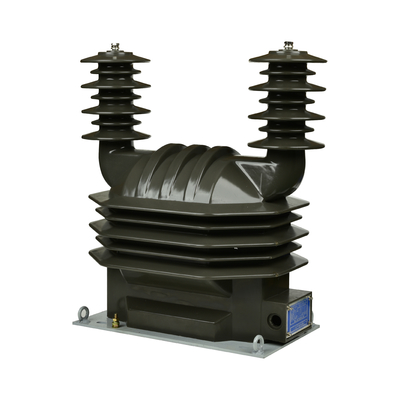

JDZW Outdoor Casting Resin Epxoy Resin High Voltage Transformer





         1. Transformer is also known as the utility Transformer, is the current Transformer and voltage transformer collectively. Can turn high voltage into low voltage, large current into small current, used to measure or protect the system. Its main function is to convert high or large current into standard low voltage(100V) or standard small current(5A or 1A) in proportion so as to standardize and miniaturize measuring instruments, protective equipment and automatic control equipment.



          2. At the same time, the transformer can also be used to separate the high voltage system to ensure the safety of the person and equipment. In power lines, the current difference from a few to a few thousand, voltage difference from several volts to several million volts. The current voltage in the line is high, so it is very dangerous to measure directly.



         3. To facilitate the conversion of the secondary instrument to a uniform current voltage, the Transformer is used to change current pressure and isolate electricity. The majority of products are single-phase, because voltage transformer capacity, small body accumulation, the inner and outer insulation between the three-phase high-pressure casing is difficult to meet, so only 3-15kV products sometimes adopt three-phase structure. Electromagnetic voltage transformer:



        4. According to electromagnetic induction principle, the transformation voltage is similar to the basic structure and Transformer. The capacitive voltage Transformer is composed of capacitive voltage divider, compensation reactor, intermediate Transformer, damper and carrier protection gap, etc.. Photoelectric voltage transformer: Through the principle of photoelectric transformation to realize voltage transformation, is still under development.



Rate Voltage Ratio Accuracy class Insulation Level
3000/100 0.2/0.5/1 12/42/75kV
35000/100 0.2/0.5/1/3 40.5/95/200kV
