Brown High Voltage Cast Resin Transformer Electrical Equipment For Power System

China Brown High Voltage Cast Resin Transformer Electrical Equipment For Power System supplier
Brown High Voltage Cast Resin Transformer Electrical Equipment For Power System supplier Brown High Voltage Cast Resin Transformer Electrical Equipment For Power System supplier

Large Image :  Brown High Voltage Cast Resin Transformer Electrical Equipment For Power System

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC/60044-2
Model Number: JDZ-35Q

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Cartons/Woodens
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Months
Contact Now
Detailed Product Description
Material: Casting Resin/Epoxy Resin Insulation Level: 40.5/95/200kV
Rated Power: 50Hz/60Hz Temperature: -5degree - 40 Degree
Accuracy Class: 0.2/0.5/1/3 Color: Brown

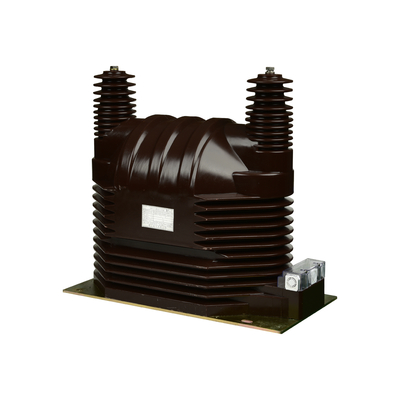

JDZ-35Q Casting Resin Epoxy Resin Indoor High Voltage Transformer





Voltage transformer(PT) and current Transformer(CT) are important electrical equipment of power system. They are responsible for the separation between high and low voltage systems and the conversion of high voltage to low voltage. Whether the wiring is correct or not is of great importance to the normal work of the equipment such as protection, measurement and monitoring. In the new installation PT, CT operation or replacement PT, CT secondary cable, the polarity test method to verify the correctness of PT and CT wiring, has been the necessary work procedures for relay protection staff.





o avoid polarity substitution is to find the "same name" of the input and output of the Transformer. The specific method is "point polarity". An example of how to point polarity is given here. The method is to connect the finger type multimeter to the secondary output winding of the transformer, and the multimeter hits the DC voltage gear. Then the negative pole of a dry battery is fixed to the primary output wire of the current Transformer. Using the positive pole of the dry battery to "point" the primary input wire of the current Transformer, so that a +(positive) pulse current will be generated in the primary circuit of the transformer; At the same time, observe which direction the needle of the pointer multimeter is "offset". If the needle of the multimeter is shifted from 0 to right, the needle is "turned back", which means that the "primary input end" of the current Transformer connected to the normal terminal of the finger type multimeter is not the same as the "secondary input end", which is called "reverse polarity" or "addition polarity".


Ratedprimary Current Accuracy class Insulation Level
  0.2/0.5/1/3 40.5/95/200kV
