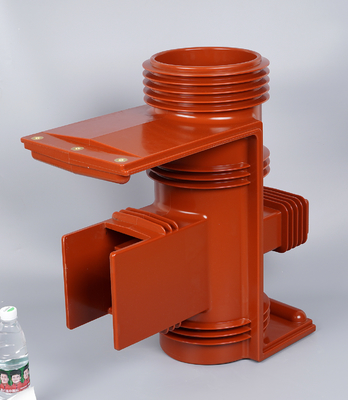

10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV

10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV
10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV

Large Image :  10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: KYN61-40.5

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS/Month
Detailed Product Description
Name: High Voltage Bushing Color: Red (Customized)
Rate Voltage: 40.5kV Frequency Voltage: 100kV
Current: 630A-4000A Flexural Strength: 10 KN
Other Name: Electrical Post Insulators
High Light:

electrical post insulators

,

high voltage post insulators

10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV





Description





Insulator is the special part to fix,install and insulat on communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.) to provide meet the fixed support, installation and insulation isolation effect of special parts, it is also known as insulators, insulation column .Its appearance is usually the cylinder,hexagonal,round.There is the insert on the two surface of insulator.



Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1
3 Contactor box (1250A) 12 50 45 ≤10 >240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 >240 ≥8 80
5



10 KN Flexural Strength High Voltage Bushing / Electrical Post Insulators 40.5kV 0



We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .

         .
