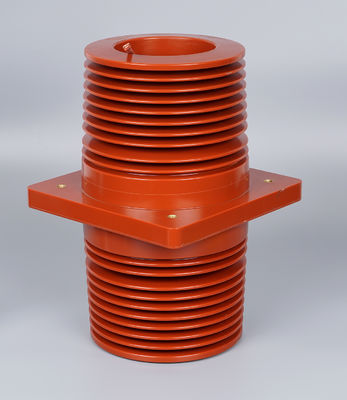

40.5kV High Voltage Epoxy Resin Insulator

  • 40.5kV High Voltage Epoxy Resin Insulator
  • 40.5kV High Voltage Epoxy Resin Insulator
Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number TG5-40.5*220*220*450
Minimum Order Quantity 6
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 5000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Material Casting Resin
Rate Voltage 40.5kV Frequency Voltage 98kV
Creepage Distance 810mm Flexural Strength 10 KN
Current 630A-4000A Light Freqency Voltage 125kV
Length 450mm
High Light

wall bushing insulators

,

wall through bushing

,

40.5kV Casting Resin Bushings
Leave a Message
Product Description



TG5-40.5kV Casting Resin Shield Spolt Switchgear Bushings with KYN61

Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(140*320) 40.5 50 98 ≤10 ＞810 ≥10 185
2 Reactance Insulators(140*320) 40.5 50 98 ≤10 ＞810 ≥10 185
3 Contactor box (1250A) 12 50 45 ≤10 ＞240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 ＞240 ≥8 80
5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185

       We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . APG process equipment mainly includes mould, Pre-mixing capacity, mobile injection special pressure vessel, full hydraulic automatic pressure gel molding machine, air compressor, after solidification need oven and necessary auxiliary machine. Applicable system: 35 KV or below voltage level of the ground, small resistance grounding, arc coil grounding, direct grounding system;
Protection range: not only can be used for line protection, such as line protection, but also can be used for, PT, main change reserve protection, motor, capacitor, reactor protection .
