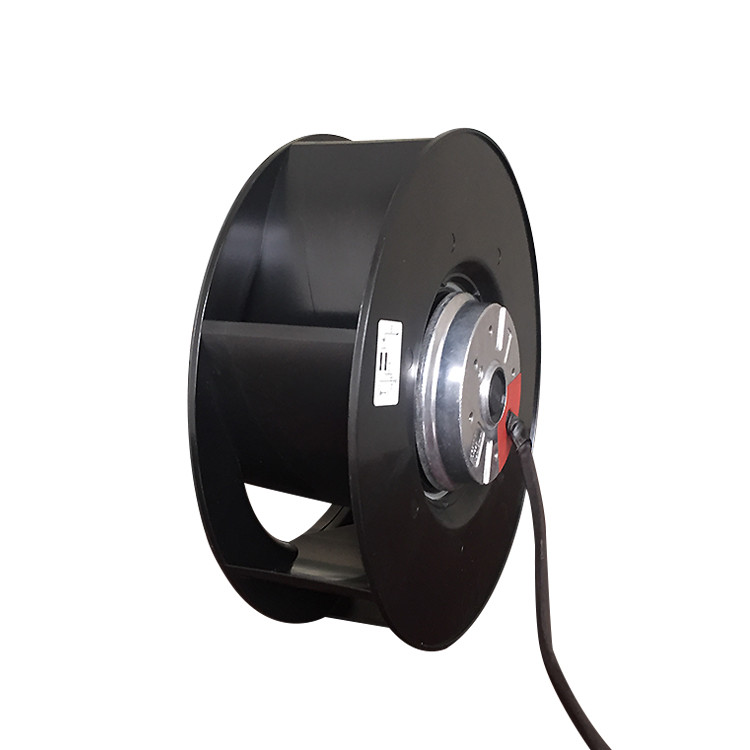

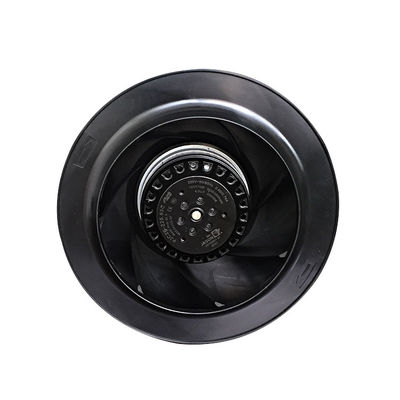

175mm Backward Curved Centrifugal Fan Air Purification System Parts

  • 175mm Backward Curved Centrifugal Fan Air Purification System Parts
  • 175mm Backward Curved Centrifugal Fan Air Purification System Parts
  • 175mm Backward Curved Centrifugal Fan Air Purification System Parts
  • 175mm Backward Curved Centrifugal Fan Air Purification System Parts
  • 175mm Backward Curved Centrifugal Fan Air Purification System Parts
Place of Origin WENZHOU,ZHEJIANG
Brand Name QIUPU
Certification TUV,UL,CE,CCC,RoHS
Model Number Centrifugal Fan
Minimum Order Quantity To be negotiated
Price To be negotiated
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Structure External Rotor Motor Electric Current Type AC
Power Supply Connection 3266-18 Lead Wire Voltage 115/230V
Customized Support OEM Blade Material Plastic
Withstand Voltage AC 1800V At 0.5mA 50/60Hz Protection Grade IP44
High Light

Air Purification System Curved Centrifugal Fan

,

Backward Curved Centrifugal Fan

,

175mm Curved Centrifugal Fan
Leave a Message
Product Description

Air Purification System Parts 175mm Backward Curved centrifugal fan



Technical Parameter

175mm Backward Curved Centrifugal Fan Air Purification System Parts 0

Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.

Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563

When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225

We can customize your unconventional products.

Motor
Cage type capacitor structure external rotor motor

Impeller
Black PA nylon one-time injection moulding

Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +80 (temperature) 0% ~ 95% (humidity)

Protection
Motor Internal with automatic recovery thermal protector

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade
design according to IEC61858 Grade F,

Protection Grade
IP44

C2E-175.45C



175mm Backward Curved Centrifugal Fan Air Purification System Parts 1



175mm Backward Curved Centrifugal Fan Air Purification System Parts 2



Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)
+10%
-20%		 (min-1) CFM m3/h (Pa) (dB) (μF)
C2S-175.45C M2S9201-AF 115 50 0.57 56 2500 324 550 280 58 ① 5.0/250
60 0.53 59 2850 348 590 370 61
C2E-175.45C M2E9201-AF 230 50 0.27 56 2500 324 550 280 58 1.5/450
60 0.28 59 2850 348 590 370 61
C2D-175.45C M2D9201-AF 380 50 0.16 57 2550 296 500 270 59 0.5/630
60 0.17 64 2900 325 550 350 62

C2E-175.45TS



175mm Backward Curved Centrifugal Fan Air Purification System Parts 3



175mm Backward Curved Centrifugal Fan Air Purification System Parts 4



Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)+10%-20% (min-1) CFM m3/h (Pa) (dB) (μF)
C2E-175.45TS M2E9201-TS

240



 50 0.22 53 2600 296 500 260 62 ① 2.0/450
50 0.20 44 2380 270 459 240 60 ②
50 0.20 41 2140 242 410 210 58 ③
