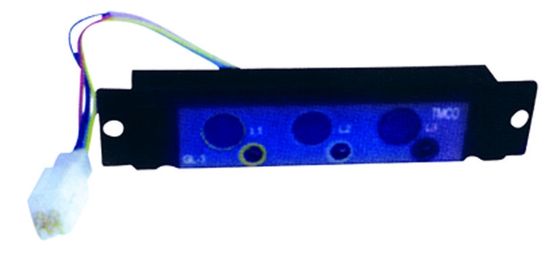

GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets

China GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets supplier
GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets supplier GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets supplier

Large Image :  GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: GL-3

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Packaging Details: Cartons
Delivery Time: 6 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS/Month
Contact Now
Detailed Product Description
Material: Plastic Rated Voltage: 3.6kV-40.5kV
Work Voltage: 110V/220V Rated Current: 15A
Color: Black Length: 126mm

GL-3 Nuclear Phase High Voltage Indicator with SF6 Sulphur hexafluoride Switchgear equipment





High voltage electric display devices using neon lamps as display elements are widely used in distribution cabinets. After a long period of operation, a high loss of visibility and extensive damage to neon bubbles are found. In order to compensate for the defect, a neon light running / closing switch was installed on the electric display device, which was in a state of turning off at normal times, thus temporarily deactivating the whole high-voltage electric display device. This treatment loses the role of a high-voltage live display device as a monitor for whether the line side is charged. The brightness of neon lamps is low, especially in bright environments where the brightness is scoured and less visible. Most of the neon high-voltage electric display devices installed in the project are made of plastic cases and are installed in the space between high-voltage devices. Once a short circuit is released inside the switchboard in the course of operation, the high temperature arc may melt the plastic cases of the devices and injure the operators or maintenance personnel.





Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Work Voltage 110V/220V
Length 126mm




      GL-3 Nuclear Phase High Voltage Indicators Device For Distribution Cabinets
