Lightweight Switchgear Epoxy Resin Insulator , Casting Resin Support Insulator

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number ZN8-24Q/105*210
Minimum Order Quantity 9
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 2000000PCS/Year
Product Details
Mateial Casting Resin Rate Voltage 24kV
Color Red Length 210mm-245mm
Creepage Distance 320MM Frequency Voltage 68kV
High Light

bus support insulators

,

post type insulator

,

Epoxy Resin Insulator 24kV

Leave a Message
Product Description

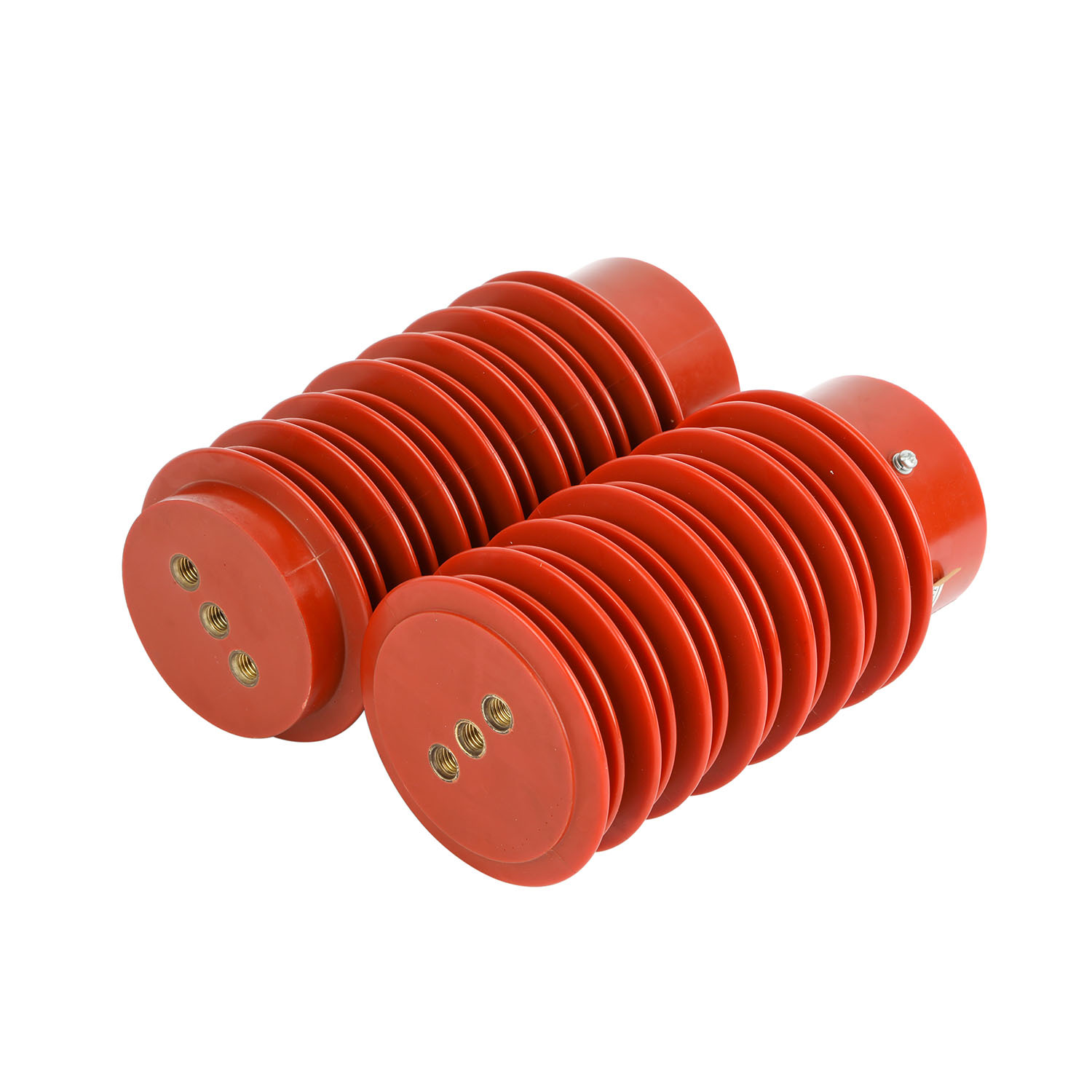

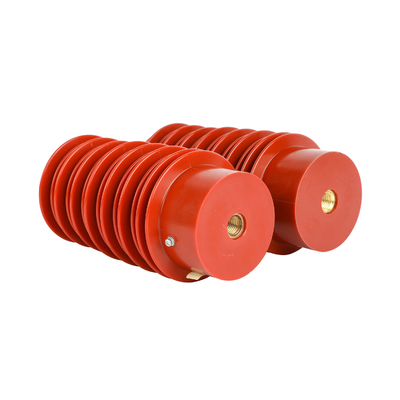

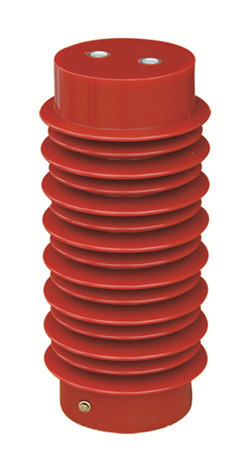

ZN8-24kV/105X210mm Epoxy Resin Insulator Casting Resin Support Insulator





An insulator with a rated voltage of 126kV, 252kV bending and breaking load of not less than 12kV and a climbing electrical ratio of 25 mm/kV, developed by the umbrella skirt, can withstand the highest operating phase voltage for a long time at 0.12 mg/2 salt density, i.e. the climbing electrical distance of insulator III, and can withstand the pollution of the IV salt equivalent.





An insulator with a rated voltage of 550kV with a crawl ratio of 25 mm/kV can operate for long periods with 0.06 mg/kg and 2 grade salt density. Insulator's pollution resistance level is the leading in China, it tolerates the equivalent of salt density higher than the same climbing distance, isometric umbrella skirt of the same product one third. The test results of resistance voltage to artificial fouling by the Northeast Power Test Institute show that the creep ratio is 1/3 .The test results of artificial fouling resistance voltage of the NETS showed that the maximum tolerance value of the insulator was 0.25 mg/kg / kV.





Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Frequency Voltage 68 kV
Dispute bend (N) ≥10000
