High Antifouling Performance Cast Resin Post Insulator CG5-24kV 105X210MM

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CG5-24kV/105X210
Minimum Order Quantity 100PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month
Product Details
Material Epoxy Resin , Casting Resin Color Red/Brown
Dia 105mm Higth 190mm-245mm
Creppage Distance 280mm Rate Voltage 24kV
Frequency Voltage 65kV Flexural Strength 10kN
High Light

bus support insulators

,

post type insulator

,

24kV Cast Resin Post Insulator

Leave a Message
Product Description

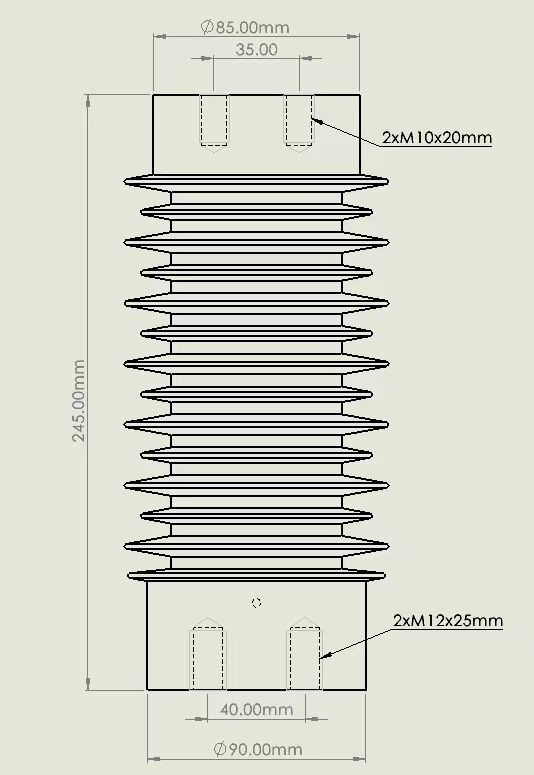

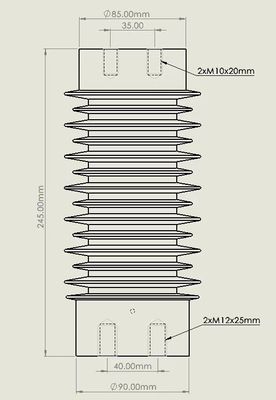

CG5-24kV/105X210MM Epoxy Resin Casting Resin Capacitor Insulator







 Insulator's anti-fouling performance mainly depends on the structure of the product and the shape of the umbrella skirt. Much work has been done in this area. Through the design optimization, artificial pollution test optimization and natural pollution test optimization, finally determined the umbrella skirt of the insulator with angle under the umbrella and the umbrella. An insulator with a rated voltage of 126kV, 252kV bending and breaking load of not less than 12kV and a climbing electrical ratio of 25 mm/kV, developed by the umbrella skirt, can withstand the highest operating phase voltage for a long time at 0.12 mg/2 salt density, i.e. the climbing electrical distance of insulator III, and can withstand the pollution of the IV salt equivalent .





Item Technical data
Rated voltage (KV)   7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)   32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)   60 75 125 185
Frequency Voltage 68
Dispute bend (N)


    High Antifouling Performance Cast Resin Post Insulator CG5-24kV 105X210MM 0



We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
