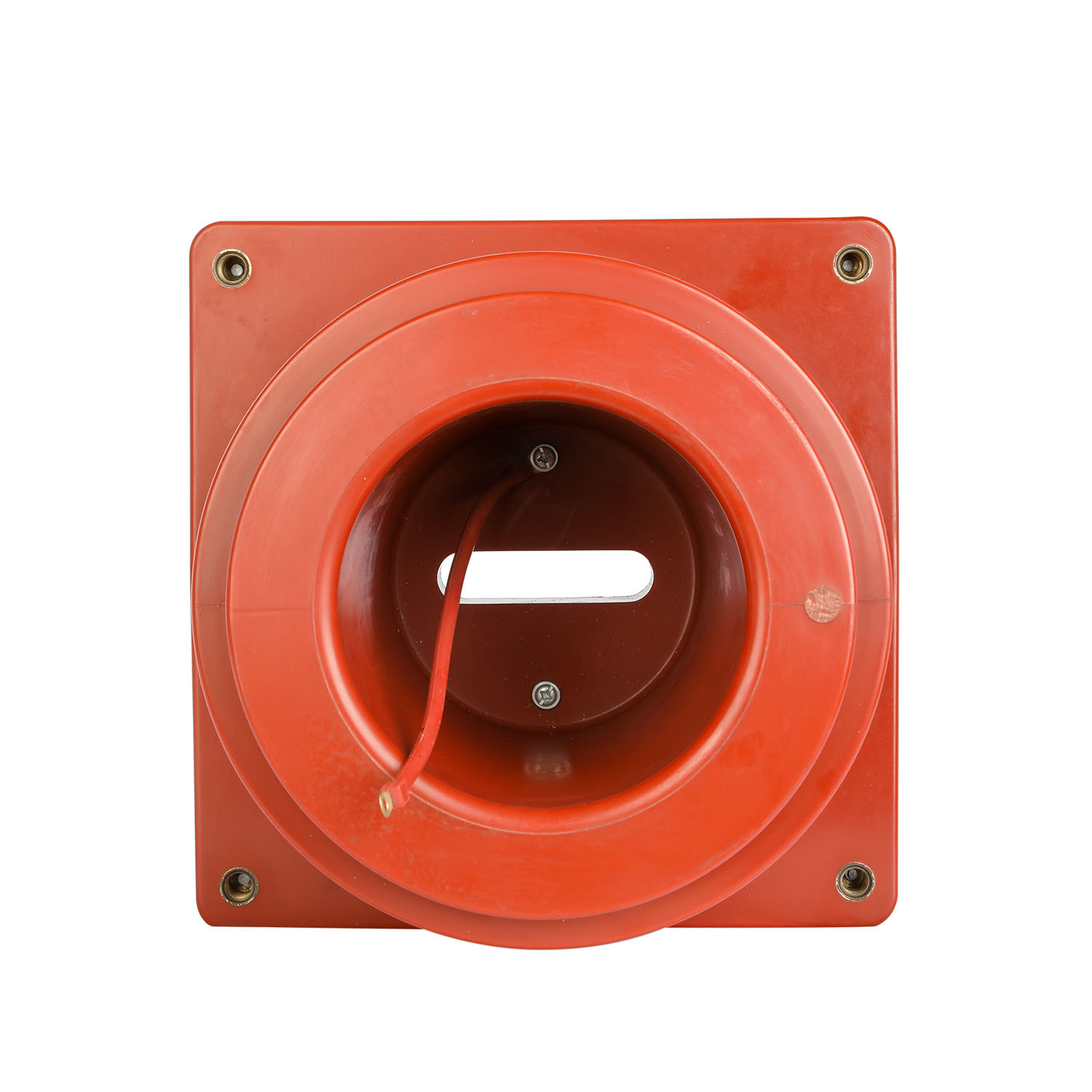

Casting Resin / Epoxy Resin Bushing , Busbar Wall Feed Through Bushing

  • Casting Resin / Epoxy Resin Bushing , Busbar Wall Feed Through Bushing
Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number TG6-40.5*260*260
Minimum Order Quantity 6
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 5000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Material Epoxy Resin , Casting Resin
Rate Voltage 40.5kV Frequency Voltage 98kV
Creepage Distance 810mm Flexural Strength 10 KN
Current 630A-4000A
High Light

epoxy resin cast bushing

,

wall bushing insulators
Leave a Message
Product Description

TG6-35Q 40.5kV Epoxy Resin Shield Spolt Bushings with KYN61 Switchgear





We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . In pouring, pouring material is the key. It has a great influence on the reliability and stability of cemented pole. For example, Xiamen Electric Switching Co., Ltd. uses the resin materials of Vantico, Switzerland, and adopts different formulas according to different current, etc. to meet different working conditions . Applicable system: 35 KV or below voltage level of the ground, small resistance grounding, arc coil grounding, direct grounding system . Protection range: not only can be used for line protection, such as line protection, but also can be used for, PT, main change reserve protection, motor, capacitor, reactor protection .





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1
4 Contactor box (1600A) 12 50 45 ≤10 ＞240 ≥8 80
5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185

    Casting Resin / Epoxy Resin Bushing , Busbar Wall Feed Through Bushing 0
