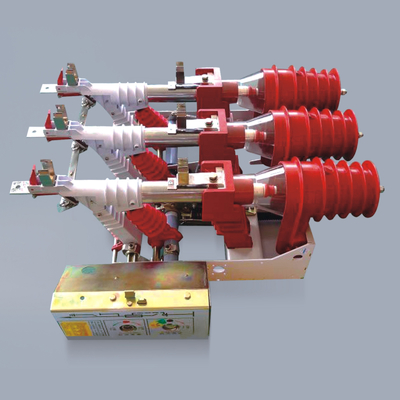

12kV High Voltage Indoor Vacuum Load Switch

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number FZN25-12/125T-31.5kA
Minimum Order Quantity 20PCS
Packaging Details WOODENS
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 50000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rate Voltage 12kV Frequency Voltage 42kV
Stable Current 31.5kA/4s Current 1250A
Life 1000 Times
High Light

hv disconnect switch


high voltage isolator switch


12kV hv vacuum load switch

Leave a Message
Product Description


12kV High Voltage Indoor Vacuum Load switch FZN25 with switcgear

Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Local discharge (pc) ≤10
Earthquake Strength  8

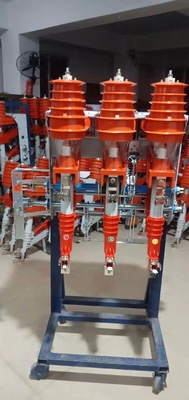

12kV High Voltage Indoor Vacuum Load Switch 0

    The type FZN 25 high voltage indoor vacuum load switch and electrical comination is use for Three phase alternating current Concurrent 50HZ industrial power euipments , its can laod control and protect short current . Load switch is  open-close load , closed current , and charging cables current . Electrical comination can close any current . There can be use by hand and power . FZN25 is designed by drive type , light weight .

A load switch is an electrical switch between an isolation switch and a circuit breaker. It has a simple arc extinguishing device that can cut the rated load current and a certain overload current, but can not cut the short circuit current.
Under the action of the separation spring, the spindle rotates clockwise, on the one hand, the piston moves upwards through the crank slide mechanism, compressing the gas. On the other hand, two sets of four-rod drive system make the main gate knife open first, then push the arc cutter to open the arc contact, the compressed air in the cylinder through the vent to extinguish the arc.
