12kV 31.5kA Indoor Electrical Earthing Switch for Switchgear Equipments

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC129
Model Number JN5-12/31.5kA-210MM
Minimum Order Quantity 10
Packaging Details Cartons/Woodens
Delivery Time 6 Days
Payment Terms T/T, Western Union
Supply Ability 5000PCS/Month
Product Details
Rate Voltage 12kV Frequency Voltage 42kV
Space Dsitance 150MM-210MM Space Current 31.5kA-40kA
Lenth 655mm Closing Time 4 S
High Light

high voltage earthing switch

,

earth switch in switchgear

Leave a Message
Product Description

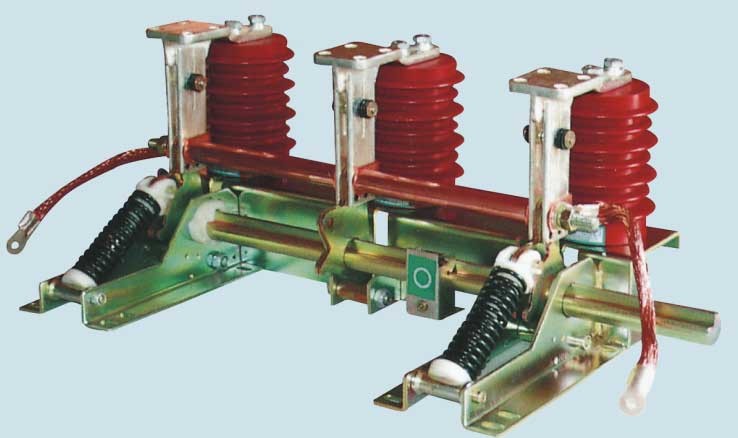

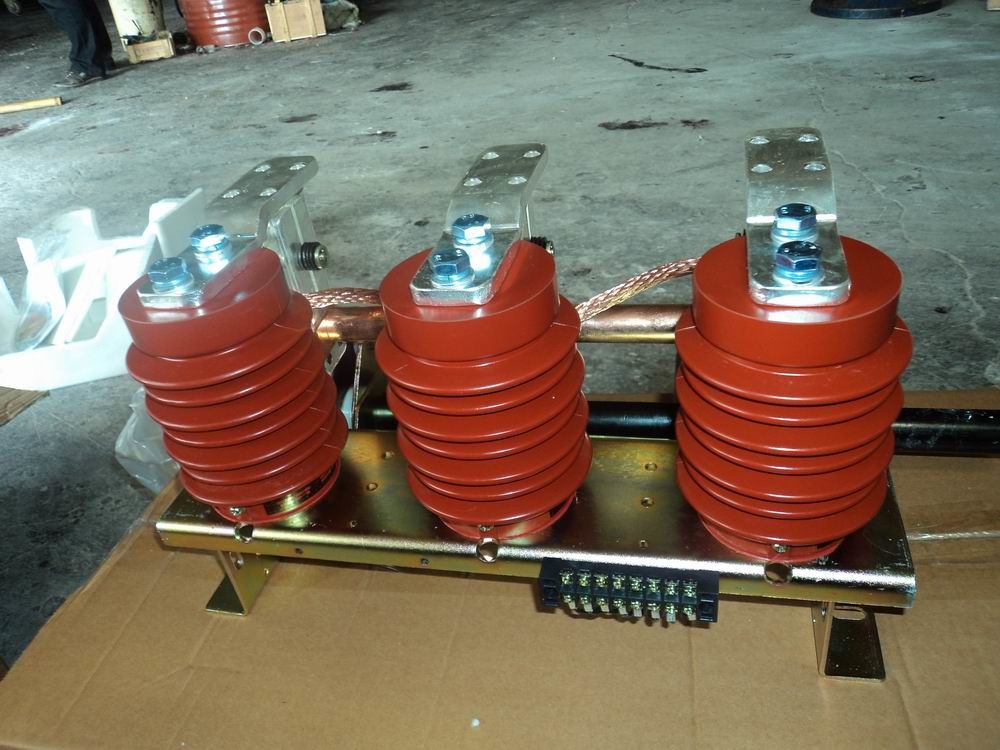

JN15-12/31.5kA-210 Earthing Switch with High Voltage Switchgear





1. JN15-12 Indoor High Voltage Eartihng switch's performance is fit the bill GB1985-89< AC voltage load brekaer switch and earthing switch > and IEC129 .

2. Lend itself to 12kV voltage 50HZ power system .

3. Fit with so many types high voltage switchgear equipments , use to protect epuipment .

4. Simple structure , easy to install .

5. Altitude is after 1000M .

6. Temperature is from 400 degree to -100 degree .

7. Fast close and open opration .

8. Can be stocked in 300 degree .



Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Sapce distance 150MM-210MM
Closing time 4 S


12kV 31.5kA Indoor Electrical Earthing Switch for Switchgear Equipments 0
