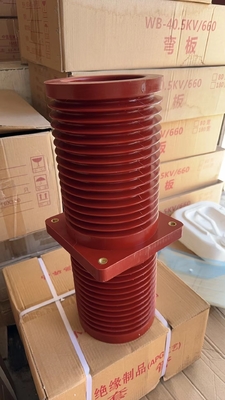

TG3-40.5kV Insulation Electrical High Voltage Bushing With Epoxy Resin Material

  • TG3-40.5kV Insulation Electrical High Voltage Bushing With Epoxy Resin Material
  • TG3-40.5kV Insulation Electrical High Voltage Bushing With Epoxy Resin Material
Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number TG340.5*180*180*550
Minimum Order Quantity 6
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 5000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red/Brown Material Epoxy Resin
Rate Voltage 40.5kV Frequency Voltage 100kV
Creepage Distance 810mm Flexural Strength 10 KN
Current 630A-4000A Light Freqency Voltage 175kV
Length 550mm
High Light

epoxy resin cast bushing

,

wall bushing insulators
Leave a Message
Product Description

TG3-40.5kV Casting Resin Shield Spolt Switchgear Bushings with KYN61





1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



2. Epoxy resin molding machine warranty time is one year. The pressure molding machine of epoxy resin produced by our company has been well received by many customers. To receive large and large customers to order. Caller information epoxy pressure molding machine.



3. Protection function: General type, more than 30 kinds of protection function in one, regardless of the occasion, what functions need to connect what line;
Measurement function: 0.2 grade high precision professional measurement, can measure more than ten electrical parameters;
Operation circuit: self-supporting, self-propelled, self-maintaining function;
Product appearance: 100mm ultra-thin metal body, strong ability to resist electromagnetic interference, suitable for KYN28 and other cabinet .





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(140*320) 40.5 50 98 ≤10 ＞810 ≥10 185

4 Contactor box (1600A) 12 50 45 ≤10 ＞240 ≥8 80
5 Wall bushing (260*395) 40.5 50 98 ≤10 ≥840 ≥10 185

    TG3-40.5kV Insulation Electrical High Voltage Bushing With Epoxy Resin Material 0
