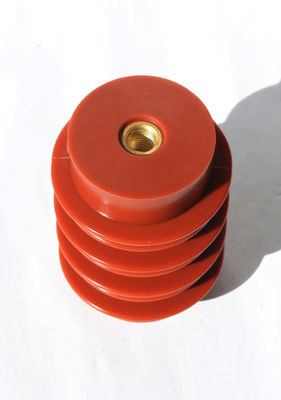

Red 10kV Epoxy Resin Support Medium Voltage Insulator 100X140mm OEM Service

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CG5-12Q/100X140mm
Minimum Order Quantity 180PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Epoxy Resin Color Red
Creepage Distance 240mm Rate Voltage 10kV
Dia 100mm Flexural Strength 10 KN
Capacity 125pF Higth 140mm
High Light

bus support insulators


post type insulator


OEM Epoxy Resin MV Insulator

Leave a Message
Product Description

CG5-12Q/100X140mm 10kV Epoxy Resin  Support Capacitor Insulator

Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Capacity 20pF-125pF
Dispute bend (N) ≥10000
Length 140mm

  Red 10kV Epoxy Resin Support Medium Voltage Insulator 100X140mm OEM Service 0



We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . The actuator room is located on the front of the annular cabinet. In each functional circuit, the load switch is provided with a manpower(or electric) energy storage spring actuator, and the grounding switch is provided with a manpower energy storage spring actuator. The panel is provided with a separation and closing hole for the operation of the load switch closing and manual switch rotation and ground switch respectively.
