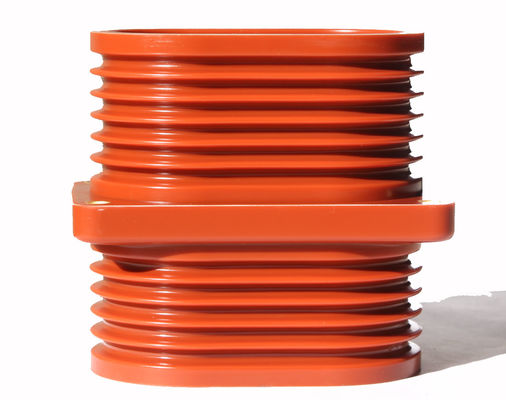

High Voltage Wall Insulation Epoxy Resin Bushing , Busbar Through Insulator

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number TG3-12Q/110X180X190MM
Minimum Order Quantity 120 PCS
Packaging Details CARTONS
Delivery Time 5 Days
Payment Terms T/T, Western Union
Supply Ability 10000PCS/MONTHS
Product Details
Material Epoxy Resin Color Red/Brown
Rated Voltage 12kV Frequency Voltage 42kV
Creepage Distance 240mm Higth 190mm
High Light

wall bushing insulators

,

wall through bushing

Leave a Message
Product Description

TG3-12Q/110X1180X190MM Casting Resin insulator Spout Wall Bushing with KYN28-12 Switchgear



Electric Power Sentiment Insulation Electric Appliance Co., Ltd. uses the DE 9308 resin supplied by JiaOriental Chemical Plant. The quality of the resin supplied by this factory has been stable. A new pouring material has been developed for cementing pole column in Japan. The material consists of epoxy resin and spherical silica with two or more diameters. It has high strength, thermal resistance and toughness. At the same time, it is highly liquid. Figure 1 shows the structure of the new pouring material. The thermal resistance and strength of this new material are 1.3 times and 1.5 times, respectively, of common resin. According to the company, the number of products produced using APG is 48 times higher than those produced using general vacuum pouring. Epoxy resin pressure gel molding machine APG equipment factory produced by the epoxy resin molding machine good functioning, low noise, electricity consumption . Epoxy resin molding machine is a special pressure gel equipment which produces the product of the finished edge, casing, contact box, Transformer, etc.



Current Bus-bar
630A 55*15
1250A 100*10
