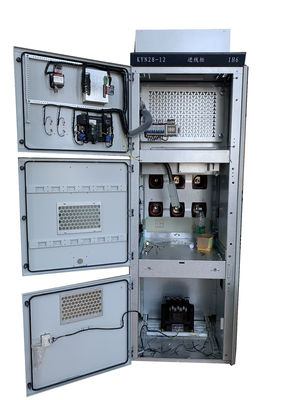

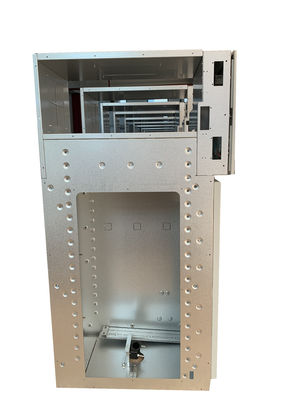

Five Anti Interlock KYN28-12 TypeType MV Fixed Switchgear
| Place of Origin | wenzhou |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | EGC/GT-12/C/630A |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | wooden |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 5000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MV Fixed Switchgear | Rate Voltage | 12kV |
|---|---|---|---|
| Rate Frequency | 50Hz | Rated Main Bus Bar Current | 630 ,1250,1600,2000,2500 ,3150A |
| Short-time Withstand Current(4S) | 20,25,31.5,40 KV | Peak Withstand Current(peak.) | 50,63,80,100 KV |
| Branch Busbar Rated Current | 630,1250,1600,2000,2500,3150 A | Main Busbar Rated Current | 630,1250,1600,2000,2500,3150 A |
Product Description
Five Anti Interlock KYN28-12 typeType MV Switchgear
MV Fixed Switchgear General Introduction:
XGN66-12 box-type fixed metal enclosed switchgear is our factory to design, research and development from a new generation of complete sets of high-voltage electrical products, switchgear suitable for 3,6-12kv three-phase AC 50Hz single bus section of the indoor sets of devices As receiving and distribution of electric energy use, and has the circuit control, protection and detection capabilities.
The products absorb advanced foreign technology, in view of the existing switchgear in the operation of similar high accident rate and the large volume of such problems Designed and developed from. It is small, only the common switch cabinet, the circuit breaker with high reliability, good performance, five anti-interlock, reliable, and simple.
MV Fixed Switchgear Environmental Conditions:
1). use the maximum temperature does not exceed 40 degrees, the minimum Not more than -25 degrees
2). relative humidity: daily average of not more than 95%, the monthly average of no more than 90% of the altitude does not exceed 1000m (over time can consult the manufacturer)
3). no fire, explosion, heavy pollution, chemical corrosion and severe Shock sites.
MV Fixed Switchgear Technical parameters:
| Items | Unit | parameter | ||
| Rate voltage | kV | 12 | ||
| Rate frequency | Hz | 50 | ||
| Rated main bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Rated branching bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Short-time withstand current(4S) | kV | 20,25,31.5,40 | ||
| Peak withstand current(peak.) | kV | 50,63,80,100 | ||
| Rated short drop out current | kV | 20,25,31.5,40 | ||
| Rated short circuit open and cut(Peak) | kV | 50,63,80,100 | ||
| Rated insulation level | 1min power frequency withstand voltage |
ph-ph,ph-ground | kV | 25,30,42 |
| breaker gap | kV | 27,34,48 | ||
| Rated lighting impulse withstand voltage(Peak) | ph-ph,ph-ground | kV | 40,60,75 | |
| breaker gap | kV |
46,70,85 |
||
Switchgear Structure:
1. The switchgear is installed electrical indication device in primary circuit. The device includes high voltage sensors and an indicator, and can indicate high voltage circuit electrical status.
2. It can also cooperate with electromagnetic lock to conduct compulsory latching on operating handle, cubicle door and adjacent cubicles. Thus, it can prevent from withdrawing isolation trolley with loads, prevent earthing switch from energized closing, and prevent from entrance of energized compartment. In this way, it can increase prevention performance of the equipped products.
3. In order to prevent condensation in high humidity or dramatically changed temperature environment, electrical heater is installed separately in circuit breaker compartment and cable compartment, to avoid dielectric accidents in the above conditions.
4. Cable compartment installs additionally earthing copper busbar which goes through adjacent cubicles and with good connection to cubicles. The copper busbar is used for direct earthing components. Since the whole cubicle is joint by aluminum zinc coated steel plates, the cubicle is in good earthing status, thus ensuring safety of operating staff.
