Withdrawable Power Distribution Switchgear 660V For Motor Control

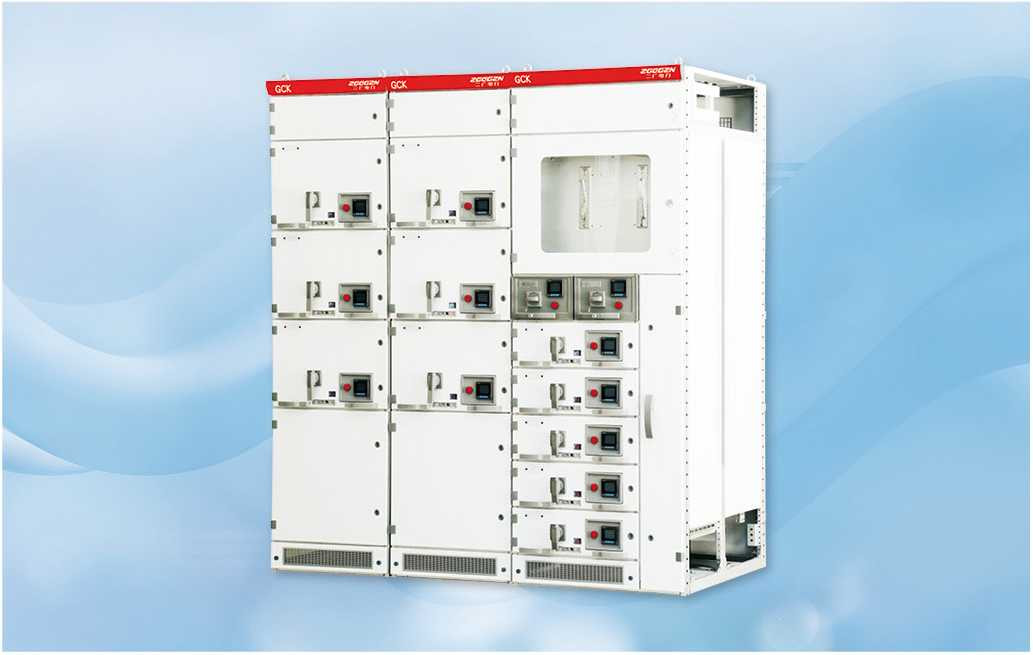

GCK Low-voltage withdrawable switchgear

Product description

GCK low-voltage withdrawable switchgear consists of two parts: power distribution center (PC) cabinet and motor control center (MCC). It is suitable for power users such as power plants, substations, industrial and mining enterprises as AC 50Hz, maximum working voltage to 660V, maximum working In the power distribution system with current up to 3150A, it is used for power distribution, motor control and lighting and other power distribution equipment for power conversion and distribution control.

Model and its meaning

① AC enclosed low-voltage switch cabinet
② Withdrawal
③ Usage code: K-control center, L-power

④ Design serial number: 1, 2, 3
⑤ Main circuit plan number

Conditions of Use

• The altitude does not exceed 2000mo
•The ambient air temperature is not higher than +40°C, and the average temperature within 24h is not higher than +35°C, and the ambient air temperature is not lower than -50°Co
• Atmospheric conditions: The air is clean, the relative humidity does not exceed 50% at +40°C, and higher relative humidity is allowed at lower temperatures, for example: 90% at +20°C. There is no place with fire, explosion hazard, serious pollution, chemical corrosion and severe vibration.
• Tilt not more than 5% to the vertical
• This product is suitable for transportation and storage at the following temperatures: -25°C ~+55°C, within a short period of time (not more than 24h) not exceeding +70°Co
• If the above conditions of use cannot be met, the user should propose to our company when ordering, and negotiate a settlement.

Technical Parameters

Installation dimension drawing

Need to know when ordering

The following technical information should be provided when ordering:
• Primary circuit plan number, equipment model, capacity and single-line system diagram;
• If the secondary circuit schematic diagram is not provided by the user, the manufacturer will provide it according to the standard;
• Arrangement drawing of switch cabinet and layout drawing of power distribution room;
• When the main bus specification does not provide the requirements, the manufacturer will provide it according to the standard;
• The surface color of the switch cabinet (the manufacturer’s standard color is: light bean color);
• If users have other requirements, they can be resolved through consultation with our factory.
