Single Core Fire Resistant Cable Pvc Sheath Xlpe Insulation Low Voltage

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number WB-160
Minimum Order Quantity 10000PCS
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 20km/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Fire Resistance Mica-Tape Conductor Copper
Wrapping Tape LSOH Bending Tape Insulation XLPE
Sheath PVC
High Light

Single Core LV Xlpe Insulation Cable


Low Voltage Fire Resistant Cable


BS 6387 Low Voltage Pvc Sheath Cable

Leave a Message
Product Description

Low Voltage Single Core Fire Resistant Cable Pvc Sheath Xlpe Insulation Cable


Model no.: NH-YJV

Conductor material: Copper(Cu)

Condutor type: Stranded

No. of cores: Single core

Cross section area: 10-400mm2

Rated voltage:0.6/1KV

Insulation: Irradiated XLPE

Jacket: Low smoke zero halogen fire resistance flame retardant PE/PO or PVC



Cable identification

- Cores: Red, yellow, blue, black, green/yellow (by color tape, except green-yellow core)

- Outer sheath: orange or as order


Normal construction

3+1,4+1,3+2,1core,2cores,3cores,4cores,5cores and etc.


Norminal cross-section of conductor(mm2):

1,1.5,2.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300, 400




1. Application scope

LSOH or LSZH fire resistant Wire and Cable can produce little smoke and innocuous gas without halogen when combustion.

The cable can be widely used in high-rise building, hospital,large-sized library, gymnasium, disaster prevention command and dispatchbuilding, station, civil airfield, passenger waiting room,emphases cultural relic, subway, underground shop or the crowded public concourses.



2. Application characteristics

1)Rated voltage UO/U:450V/750V; AC polyolefin UO/U is 0.6/1kv;

2)Temperature range during operation:-20 centigrade-90 centigrade or -40 centigrade-105 centigrade;

3)Recommended bending radius:non-armoured cable should not less than 6 times of cable diameter, armoured or copper tape shielded cable should not less than 12 times of cable diameter.



BS 7846; IEC 60331; BS 6387




(1) Conductor: Plain annealed copper (class 2, normal
stranded or compact stranded)

(2) Fire barrier: Mica tape

(3) Insulation: XLPE

(4) Filler, binder and inner covering: PP, PET, LSZH

(5) Armour: Steel wire

(6) Outer sheath: LSZH

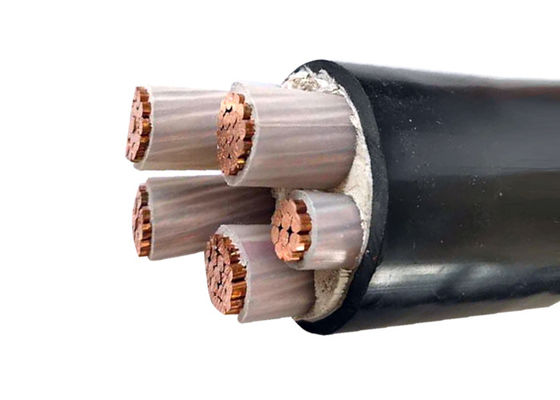

Low Voltage Single Core Fire Resistant Cable Pvc Sheath Xlpe Insulation Cable 0



- Voltage rate: 0.6/1kV

- Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.

- Minimum bend radius: 12xD (twelve times overall diamerter of cable)

- Fire resistant: IEC 60331; BS 6387

- Flame retardant: BS EN 60332-1; IEC 60332-1

- Corrosive and acid gas: BS 7846; BS 50267-2-1; IEC 60754-1&2

Smoke emission: BS 7846; BS EN 50268-2; IEC 61034-2

Notes: * All conductor in accordance with IEC 60228. Compacted conductor (C.C) or non-compacted depend on order.

• Besides the above mentioned list we can also provide other sizes depending on customer’s requirement.





Packing and shipping:


We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
