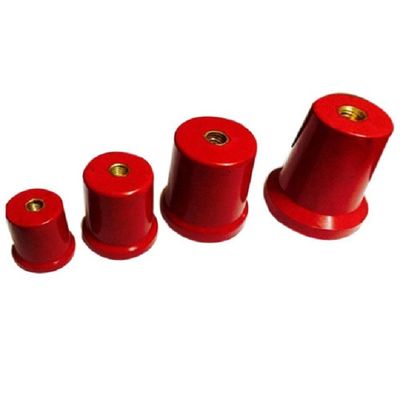

Electrical Epoxy Resin Low Voltage Standoff Insulator Supporting Busbar

  • Electrical Epoxy Resin Low Voltage Standoff Insulator Supporting Busbar
  • Electrical Epoxy Resin Low Voltage Standoff Insulator Supporting Busbar
Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CG5-12Q/100X150mm
Minimum Order Quantity 180PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Epoxy Resin/Casting Resin Color Red/Brown
Creepage Distance 260mm Dia 100mm
Flexural Strength 10 KN Higth 150mm
Operating Temp -40--+140 Product Name Electrical Epoxy Resin Standoff Support Insulator Of Busbar
Highlight

10 kN Low Voltage Standoff Insulators

,

Epoxy Resin Electrical Standoff Insulators

,

Epoxy Resin Busbar Standoff Insulators
Leave a Message
Product Description

Low Voltage Electrical Epoxy Resin Standoff Support Insulator Of Busbar



Product Description:



Standoff Insulators are ideal for use in supporting bus bars or other live electrical components. Our products recognized fiberglass reinforced, flame resistant, thermoset polyester molding compound, these components exhibit strong mechanical and electrical insulating properties.



The Standoff Insulators are recognized polymeric composite material. The production process is controlled in an ISO 9001:2008 manufacturing environment. Each lot is mechanically and electrically tested to ensure performance and reliability for most demanding electrical applications.



Item Technical data
Rated voltage (KV)     12 24
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42 68
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75 125
Capacity 125pF
Dispute bend (N) ≥10000
Length 150mm


 Electrical Epoxy Resin Low Voltage Standoff Insulator Supporting Busbar 0



 FAQ:

1 How long is your products warranty ?

A: The warranty period of our products is 18 months.

2 How about inspection?

A: We have the whole inspection system from raw material to end products include temperature test,strength test and so on.

3 What do you have for certificate?

A: Our products are passed through IEC60947and IEC60269standarded.

4 What is payment terms?

A: T.T,Western Union and L/C isacceptable.

5 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement.

We also have the sales team to offer good service from pre-sale to after-sale.
