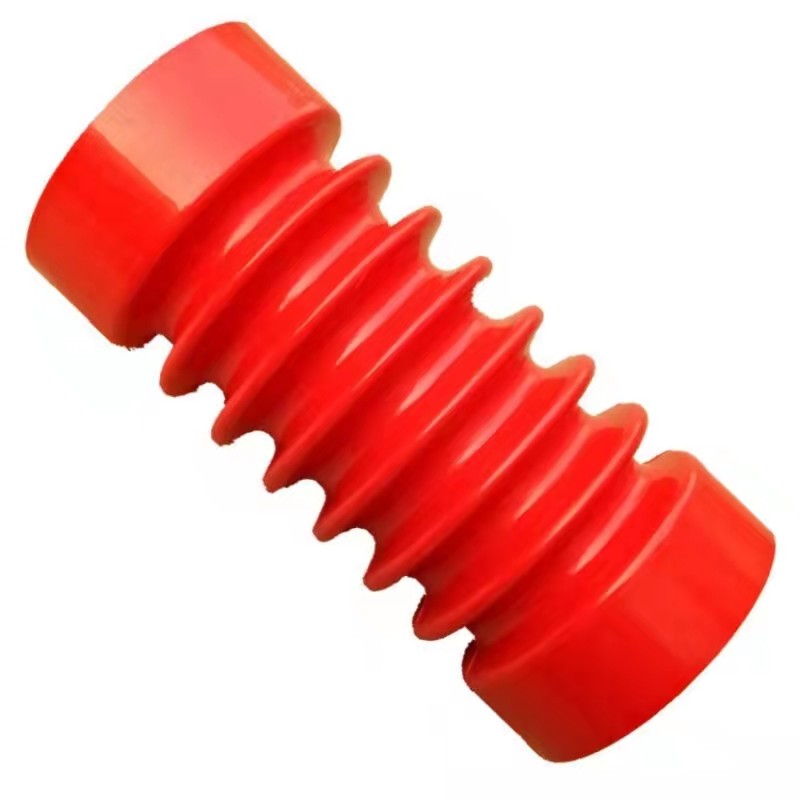

Insulation Equipment Epoxy Resin Insulator 240mm 12kv For Switchgear

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Epoxy Resin | Rate Voltage | 12 KV |
---|---|---|---|
Current | 1600A-2000A | Creepage Distance | 240mm |
Working Temperature | -40~230 Celsius Degree | Application | High-voltage |
Highlight | Insulation Equipment Epoxy Resin Insulator,Epoxy Resin Insulator 12kv,240mm Epoxy Resin Insulator |
3.6-12kv Insulation Equipment Epoxy Resin Insulator For Switchgear
Application:

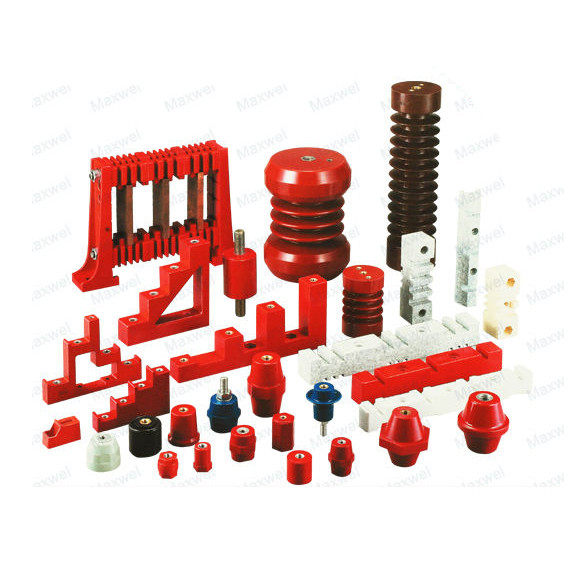

Medium and high voltage includes 12kV,24kV,35kV insulators of various specifications, fixed contact, flat contact, tulip contact, earthing switch, chassis truck, shutter mechanism,interlock mechanism.We have established a quality management system in strict accordance with the ISO 9001:2008 standard, and won the first batch of compulsory national "CCC" certification,"CE", "CB" export certification, production license and related type test reports. It can produce high-quality products with high efficiency.

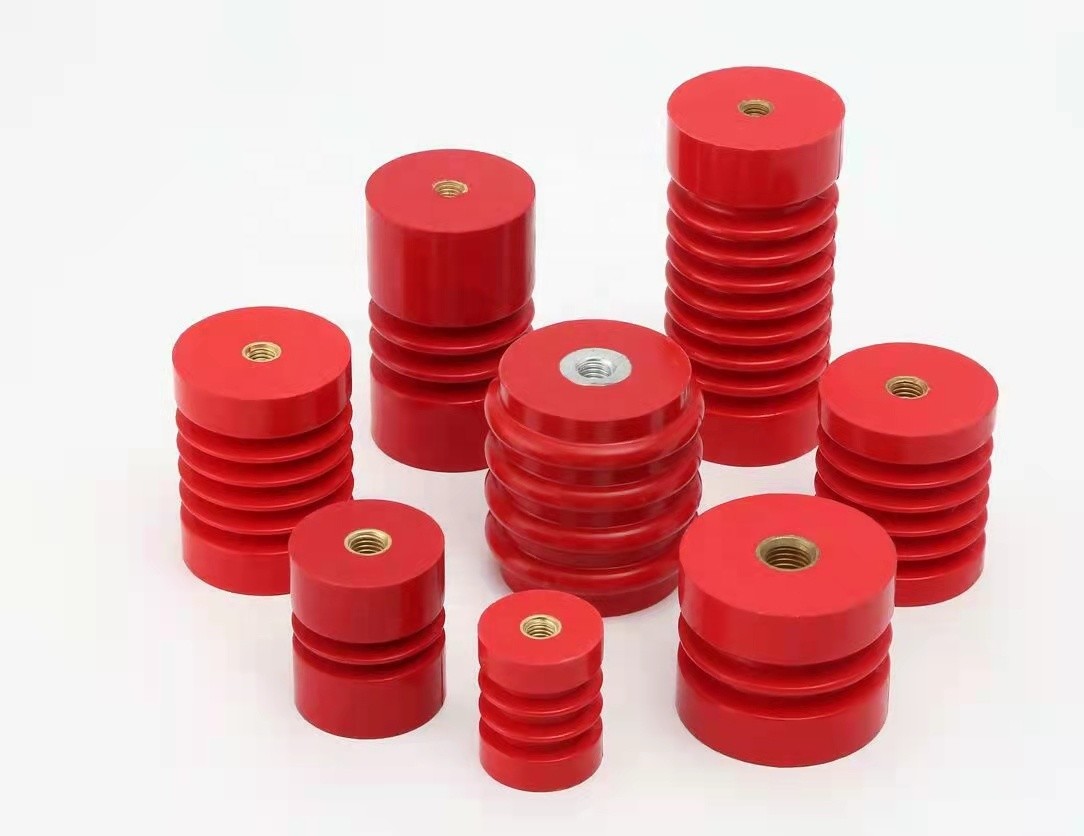

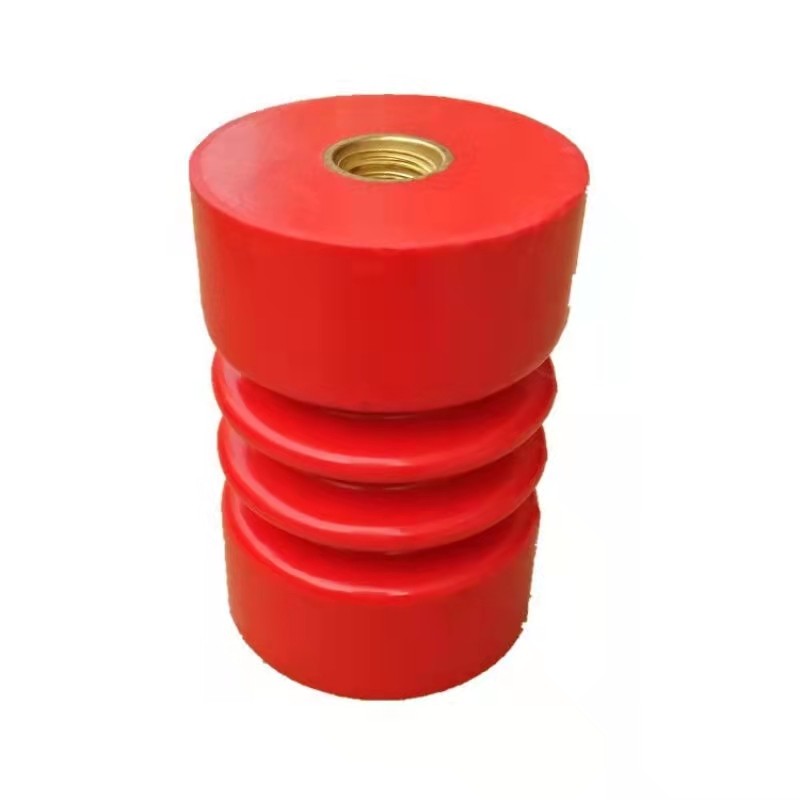

Busbar insulator:
Operating Temperature: -40~140º C
Insert Brass: Steel with Zn coating
Material: BMC (Bough Moulding Compound)
SMC (Sheet Moulding Compound)
Colour, insert, material in capability accordance screw with customer needs
Specifications of SM Insulator SM25
1.Operating Temperature:-40~+140
2.Insert:Brass.Steel with Zn coating
3.Colour,Insert,material property can be customized by your request.
Product Description | ||
Products | Name | Epoxy Resins Transformer Bellow Insulators |
Products category | Plastic Injection product | |
Material | plastic: (BMC , DMC, SMC, Epoxy Resins) | |
Size | All size and thickness available. | |
Shape | capable of all shapes as per drawing | |
Color | Red,black, Pantone code or RAL code, or as per client's samples or requirements | |
Hardness | 80-100D | |
Surface finishing | Texture (VDI/MT standard, or made to client's sample), polished (high polish, mirror polish), smooth, painting, powder coating, printing, electroplating etc. | |
Drawing | 2D or 3D draiwng in any image/picture format is OK | |
Free sample | Yes | |
OEM/OEM | Yes | |
Application | Household, Electronics Machinery etc. | |
Market | Europe, North America, Oceania | |
Quality certification | ISO 90001:2008, IATF16949, FDA, REACH, ROHS, SGS | |
QC | Every order production will get more than 10 times regular check and 5 fives times random check by our professional QC. Or by Third party appointed by customer |
Mold | Molding Process | Injection molding, mold processing, extrusion |
Mould type | processing mold, injection mold, extrusionmold | |
Machines | 350T vacuum pressing machine and other pressing machine at 300T,250T and so on | |
Tooling equipment | Rubber tension tester, Rubber vulcanization instrument, Durometer, calipers, ageing oven | |
Cavity | 1~400 cavities | |
Mould Life | 300,000~1,00,000 times |
