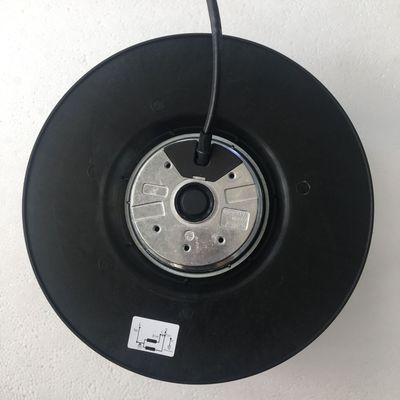

UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM

  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
  • UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM
Place of Origin WENZHOU,ZHEJIANG
Brand Name QIUPU
Certification TUV,UL,CE,CCC,RoHS
Model Number Centrifugal Fan
Minimum Order Quantity To be negotiated
Price To be negotiated
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Grade IP44 Model Number C2S-225.63C
Warranty 4 Years Diameter Of Impeller 225mm
Insulation Grade Design According To IEC61858 Grade F, Motor Cage Type Capacitor Structure External Rotor Motor
After-sales Service Provided Online Support Withstand Voltage AC 1,800V , 1 Min At 0.5mA, 50/60 Hz
Highlight

225mm Backward Curved Centrifugal Fan

,

110V AC Backward Curved Centrifugal Fan

,

UL Approved Backward Curved Centrifugal Fan
Leave a Message
Product Description

UL approved 225mm diameter 800CFM 110V AC Backward Curved Centrifugal Fan OEM ODM Customized for medical and home use



Motor: Cage type capacitor structure external rotor motor

Impeller: Black PA nylon one-time injection moulding

Allowable environment temperature and humidity range:(under unconcretionary condition) -40 ~ +80 (temperature) 0% ~ 95% (humidity)

Protection: Motor Internal with automatic recovery thermal protector

Withstand Voltage: AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade: design according to IEC61858 Grade F

Protection Grade: IP44



Technical Parameter

UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM 0

Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.

Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563

When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225

We can customize your unconventional products.

Motor
Cage type capacitor structure external rotor motor

Impeller
Black PA nylon one-time injection moulding

Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +80 (temperature) 0% ~ 95% (humidity)

Protection
Motor Internal with automatic recovery thermal protector

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade
design according to IEC61858 Grade F

Protection Grade
IP44

C2E-225.63C



UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM 1



UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM 2



Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)+10%-20% (min-1) CFM m3/h (Pa) (dB) (μF)
C2S-225.63C M2S9203-AF 115 50 1.25 119 2650 708 1200 540 68 ① 10.0/250
60 1.37 152 2950 790 1340 730 71
C2E-225.63C M2E9203-AF 230 50 0.60 131 2650 708 1200 540 68 4.0/450
60 0.74 170 2950 790 1340 730 71
C2D-225.63C M2D9203-AF 380 50 0.33 125 2650 708 1200 540 68 2.0/630
60 0.48 180 2950 790 1340 730 71
C4E-225.63C M4E9203-AF 230 50 0.28 51 1390 371 629 290 54 ② 1.5/450
60 0.24 53 1640 437 742 400 60



C2E-225.63DS



UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM 3



UL Approved Backward Curved Centrifugal Fan 225mm Diameter 800CFM 110V AC OEM ODM 4



Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)+10%-20% (min-1) CFM m3/h (Pa) (dB) (μF)
C2E-225.63DS M2E9203-DS 240 50 0.38 92 2380 635 1077 485 66 ① 3.0/450
50 0.37 86 2220 593 1005 452 64 ②
