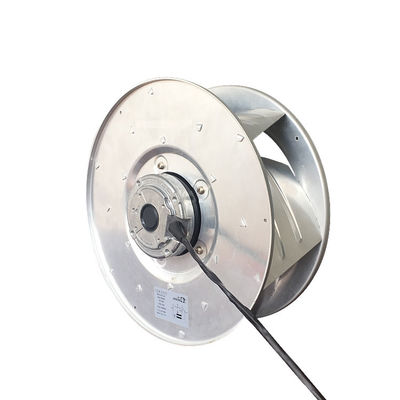

AC Backward Centrifugal Ventilation Fan Curve Blade 315mm

  • AC Backward Centrifugal Ventilation Fan Curve Blade 315mm
  • AC Backward Centrifugal Ventilation Fan Curve Blade 315mm
  • AC Backward Centrifugal Ventilation Fan Curve Blade 315mm
  • AC Backward Centrifugal Ventilation Fan Curve Blade 315mm
Place of Origin WENZHOU,ZHEJIANG
Brand Name QIUPU
Certification TUV,UL,CE,CCC,RoHS
Model Number Centrifugal Fan
Minimum Order Quantity To be negotiated
Price To be negotiated
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Manufacturing Plant, Other Blade Material Cast Iron
Warranty 1 Years Dielectric Withstand Voltage AC 1800V At 0.5mA 50/60Hz
Customized Support OEM, ODM, OBM Unit Weight 1.24KG
Voltage 115/230/380V Protection Grade IP44
Highlight

Curve Blade Centrifugal Fans

,

Curve Blade Ventilation Fan

,

315mm Curve Blade Ventilation Fan
Leave a Message
Product Description

315mm AC Backward Curve Blade Centrifugal Fans Ventilation Fan



Technical Parameter

AC Backward Centrifugal Ventilation Fan Curve Blade 315mm 0

Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.

Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563

When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225

We can customize your unconventional products.

Motor
Cage type capacitor structure external rotor motor

Impeller
Impact molding of aluminium alloy plate

Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +70 (temperature) 0% ~ 95% (humidity)

Protection
Motor Internal with automatic recovery thermal protector

Withstand Voltage
AC 1,800V ,1 min at 0.5mA, 50/60 Hz

Insulation Grade
design according to IEC61858 Grade F,

Protection Grade
IP44

AC Backward Centrifugal Ventilation Fan Curve Blade 315mm 1

AC Backward Centrifugal Ventilation Fan Curve Blade 315mm 2

Parameters

Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)+10%-20% (min-1) CFM m3/h (Pa) (dB) (μF)
C4S-315.101 M4S10201-AF 115 50 1.16 120 1380 1256 2130 290 59 ① 12.0/250
60 1.45 165 1560 1404 2380 400 62
C4E-315.101 M4E10201-AF 230 50 0.46 101 1380 1256 2130 290 59 3.0/450
60 0.62 143 1500 1404 2380 400 62
C4D-315.101 M4D10201-AF 380 50 0.40 128 1380 1256 2130 290 59 1.0/630
60 0.47 170 1540 1404 2380 400 62
C4ED-315.101 M4ED10201-AF 230/400 50 .62/.35 137/135 1360 1256 2130 290 59 -------
60 .58/.32 167/170 1500 1404 2380 400 62
