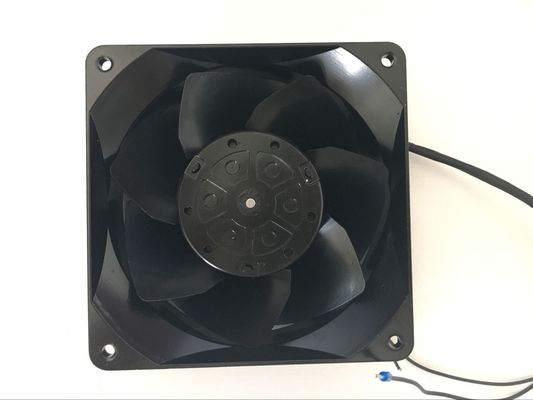

Fj12032mab Compact Axial Fan With Metal Blades 120mm

  • Fj12032mab Compact Axial Fan With Metal Blades 120mm
  • Fj12032mab Compact Axial Fan With Metal Blades 120mm
  • Fj12032mab Compact Axial Fan With Metal Blades 120mm
  • Fj12032mab Compact Axial Fan With Metal Blades 120mm
Place of Origin WENZHOU,ZHEJIANG
Brand Name QIUPU
Certification TUV,UL,CE,CCC,RoHS
Model Number Axial Flow Fan
Minimum Order Quantity To be negotiated
Price To be negotiated
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Customized Support OEM, ODM, OBM Electric Current Type AC
Mounting Free Way Voltage 120V, 220V, 380V
Sales Service Provided Video Technical Support Blade Material Plastic
Withstand Voltage AC 1,800V , 1 Min At 0.5mA, 50/60 Hz Protection Grade Impedance Protection /IP44
Highlight

Compact Axial Fan

,

Compact Axial Fan With Metal Blades

,

120mm Compact Axial Fan
Leave a Message
Product Description

compact axial fan fj12032mab with metal blades 120mm

Technical Parameter

Fj12032mab Compact Axial Fan With Metal Blades 120mm 0

References are based on the frame dimension, which helps you to quickly select the best choice for your installation.

Example:
When your installation space is enough for dimention 120*120*38mm, please choose FJ1203

When you choose AC 220V, frame size 120x120x38mm, sleeve bearing, plug-in connection, please choose model FJ12032AST

We can customize your unconventional products.

Fj12032mab Compact Axial Fan With Metal Blades 120mm 1

Frame
Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

Impeller
Black plastic PBT UL94V-0

Operation Temperature/Humidity Range: (under unconcretionary state)
-30℃ ~ +60℃ (temperature), 0% ~ 95% (himidity)

Protection
Impedance Protected

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation System
design according to IEC61858 Grade B,

Protection Grade
IP34

Fj12032mab Compact Axial Fan With Metal Blades 120mm 2

Fj12032mab Compact Axial Fan With Metal Blades 120mm 3

Type Motor Rated Voltage Frequency current Power Speed Max Air Flow Static Pressure Noise Curve Capacitor Motor
V Hz (A) (W)+10%-20% (min-1) CFM m3/h (Pa) (dB) (μF)
FJ12031AS M2S6301-SB 115 50 0.24 18 2500 85 145 51 34 ② -----
60 0.20 15 2800 100 170 63 37
FJ12031AB M2S6301-AB 115 50 0.24 18 2500 85 145 51 34 -----
60 0.20 15 2800 100 170 63 37
FJ12032AS M2E6301-SB 230 50 0.12 19 2500 85 145 51 34 ① -----
60 0.10 14 2700 95 160 63 37
FJ12032AB M2E6301-AB 230 50 0.12 19 2500 85 145 51 34 ② -----
60 0.10 14 2700 95 160 63 37
FJ12033AB M2D6301-AB 380 50 0.07 18 2500 85 145 51 34 -----
60 0.06 16 2800 100 170 63 37

Packaging & delivery

Selling Units:
Single item
Single package size:
25X25X20 cm
Single gross weight:
2.500 kg
Package Type:
12PCS/CTN or 120pcs/pallet

Lead time:
Quantity(pieces) 1 - 1 2 - 200 201 - 1000 >1000
Est. time (days) 2 7 12 To be negotiated
