GMS-2 Electrical Switchgear Components Steel Door Lock High Voltage

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number GMS-2
Minimum Order Quantity 500PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000 PCST/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Steel Caninet KYN28-12/630-4000
Width 40mm Screw M10
High Light

High Voltage Switchgear Steel Door Lock


Switchgear Components Steel Door Lock


40mm Steel Door Lock

Leave a Message
Product Description

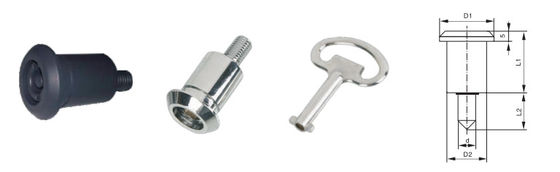

GMS-2 Door Lock with Indoor High Voltage Switcgear Equipment KYN28-12



                 At  present, most of the substation, electrical distribution room building area is more abundant, for the convenience of engineering installation, maintenance and maintenance, often design the cabinet is not against the wall installation. The rear sealing plate is replaced with a two-side hinge door, which is convenient to maintain the front and back of the switchboard. The back door of the neutral cabinet is interlocked by the interlock device of the ground switch.



              When the earthing switch is in the state of separation, the socket of the lock cover on the earthing switch operating shaft is 90 degrees different from the opening of the back door, thus locking the back door so that it can not be opened and preventing personnel from straying into the electric cable room. The back door can be opened safely only if the shaft of the ground switch rotates and the ground switch is deviated(90 °), and the socket on the lock is aligned with the opening of the back door. However, when the back door is opened, the grounding switch can still be operated directly to the switch without closing the back door, thus unlocking the circuit breaker, which can be closed because the back door is not closed.


Item Technical data
Rated voltage (KV)
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)
Local discharge (pc) ≤10
Dispute bend (N) ≥10000
