Indoor AC HV Earthing Switch Mechanical For Power System JN15-12/T40

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number JN15-12/T40
Minimum Order Quantity 20PCS
Packaging Details CARTONS/WOODENS
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 50000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Rate Voltage 10kV Frequency Voltage 42kV
Space Current 31.5-40kA/4S Distance 150mm
Short Circuit Opnening Current 80kA Life 1000 Times
High Light

AC HV Earthing Switch Indoor


Mechanical 150mm Earthing Switch


80kA Earthing Switch

Leave a Message
Product Description

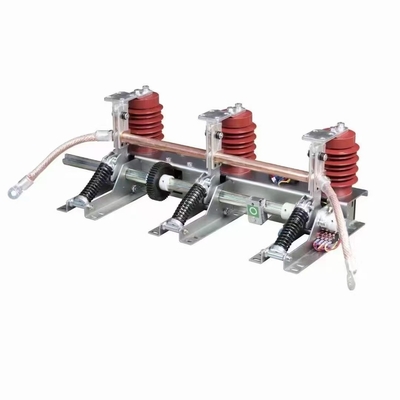

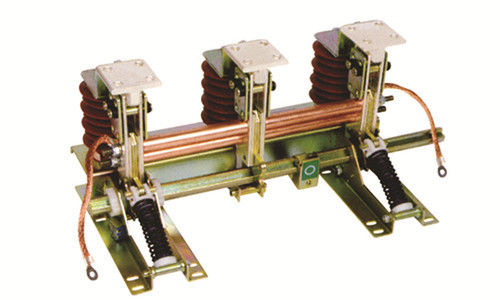

Mechanical Indoor AC HV Earthing Switch For Power System JN15-12/T40





JN15A-12/31.5 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance. After comprehensive evaluation,it conforms to GB1985 and IEC62271 standard ,applies to power system of 3-12kV and three-phase AC 50Hz.It owns short-circuit making capacity to protect other electric equipment not being damaged.Can be used with various high voltage switchgear,also play a protective role in the high-voltage electrical equipment overhaul.

Earthing switch, a mechanical switch used in the grounding part of a circuit, belongs to the isolation switch category.

It can carry current under abnormal conditions(such as short circuit current) for a certain period of time, but it is not required to carry current under normal circuit conditions.
Note: Ground switches may have short circuit connection capacity.


To ground high-voltage equipment and lines during maintenance in place of portable ground lines to protect personal safety .


Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40   75
sapce 150mm-275mm
Life 1000
