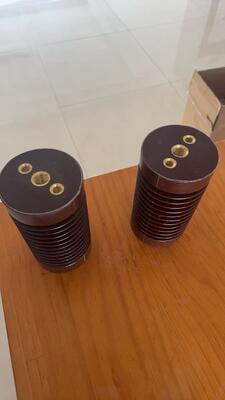

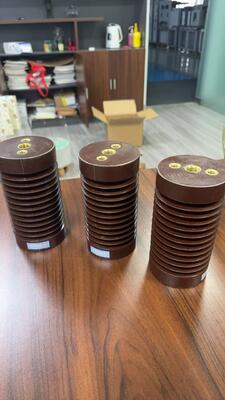

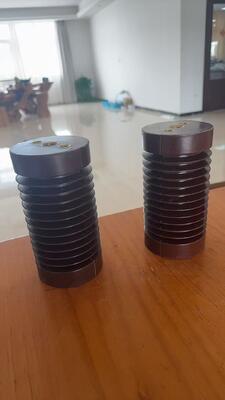

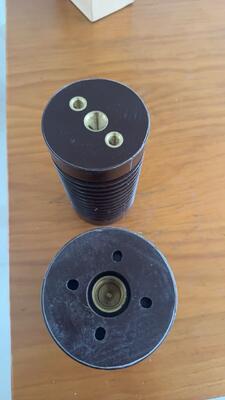

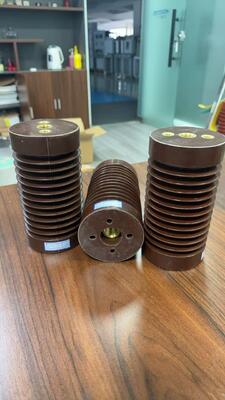

H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance

  • H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance
  • H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance
  • H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance
Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number ZN8-24Q/90*175
Minimum Order Quantity 100PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Epoxy Resin , Casting Resin Color Red/Brown
Dia 90mm Higth 175mm
Creppage Distance 380mm Rate Voltage 24kV
Frequency Voltage 65kV Flexural Strength 10kN
High Light

24kV Medium Voltage Insulators

,

Water Resistance Medium Voltage Insulators

,

24kV Epoxy Resin Medium Voltage Insulators
Leave a Message
Product Description

ZN8-24Q/90X175mm Casting Resin Epoxy Resin Support Insulator







We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . Insulator's anti-fouling performance mainly depends on the structure of the product and the shape of the umbrella skirt. Much work has been done in this area. Through the design optimization, artificial pollution test optimization and natural pollution test optimization, finally determined the umbrella skirt of the insulator with angle under the umbrella and the umbrella.



Competitive Advantage:





1, Very good anti-pollution performance, no need to wash the insulators after the installation in lines.

2, Very convenient installation because of its light weight and one whole piece compared with glass insulators and ceramic insulators.

3, Excellent hydrophobicity characteristics can help to void flashover and guarantee the insulators with very good electric performance.



Item Technical data
Rated voltage (KV)   7   24
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)       68
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)       125
Local discharge (pc) ≤10
Dispute bend (N) ≥1000


  H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance 0  H=175mm 24kV Epoxy Resin Medium Voltage Insulators , Support Insulator Water Resistance 1
