12kV Support Insulators with Casting Resin Material for APG Technology
| Place of Origin | WENZHOU |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | ZN8-12Q/85X140 |
| Minimum Order Quantity | 100 PCS |
| Packaging Details | Cartons |
| Delivery Time | 5 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red Or Brown | Material | Epoxy Resin |
|---|---|---|---|
| Voltage Rating | 3.6kV-12kV | Creepage Distance | 280mm |
| Frequency Voltage | 42kV | Length | 140mm/145mm |
| High Light | APG 12kV Support Insulators,Casting Resin Material 12kV Support Insulators,12kV Support Insulators |
||
Product Description

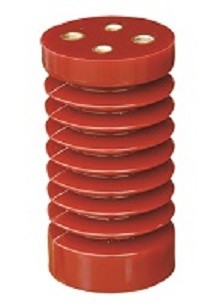

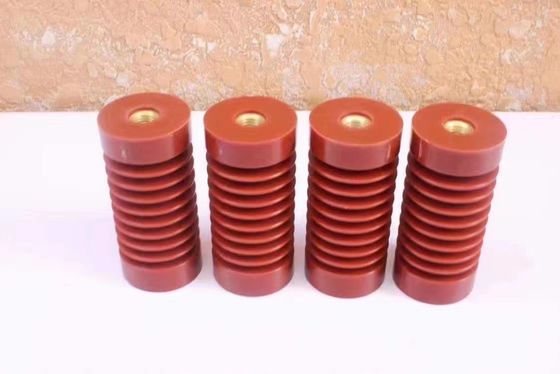

12kV Support Insulators with Casting Resin Material for APG Technology
Insulator's anti-fouling performance mainly depends on the structure of the product and the shape of the umbrella skirt. Much work has been done in this area. Through the design optimization, artificial pollution test optimization and natural pollution test optimization, finally determined the umbrella skirt of the insulator with angle under the umbrella and the umbrella.
An insulator with a rated voltage of 126kV, 252kV bending and breaking load of not less than 12kV and a climbing electrical ratio of 25 mm/kV, developed by the umbrella skirt, can withstand the highest operating phase voltage for a long time at 0.12 mg/2 salt density, i.e. the climbing electrical distance of insulator III, and can withstand the pollution of the IV salt equivalent.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 7.2 | 12 | 24 | 40.5 | |||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 32 | 42 | 68 | 100 | |||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 60 | 75 | 125 | 185 | |||||||||
| Dispute bend (N) | ≥10000 | ||||||||||||
