10kv Support Insulators With Epoxy Resin Material For APG Technology By Three Holes

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number ZN8-12Q/75X150
Minimum Order Quantity 100 PCS
Packaging Details Cartons
Delivery Time 5 Days
Payment Terms T/T, Western Union
Supply Ability 1000000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Or Brown Material Epoxy Resin
Voltage Rating 3.6kV-12kV Creepage Distance 280mm
Frequency Voltage 42kV Length 150mm
Highlight

Epoxy Resin Support Insulators

,

10kv Support Insulators

,

APG Technology Support Insulators

Leave a Message
Product Description

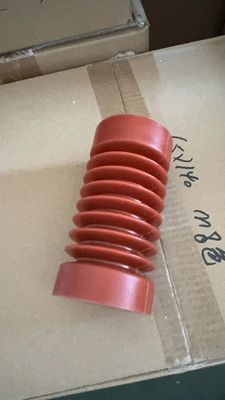

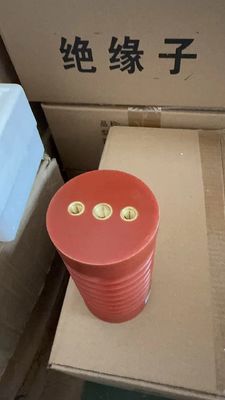

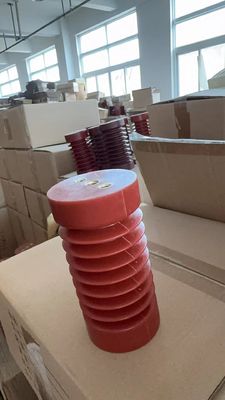

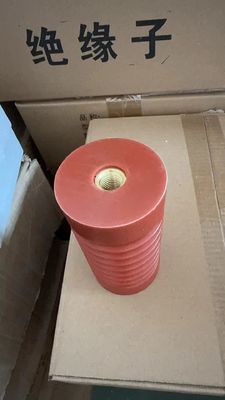

10kv Support Insulators with Epoxy Resin Material for APG Technology by three Holes





Insulator's anti-fouling performance mainly depends on the structure of the product and the shape of the umbrella skirt. Much work has been done in this area. Through the design optimization, artificial pollution test optimization and natural pollution test optimization, finally determined the umbrella skirt of the insulator with angle under the umbrella and the umbrella.







An insulator with a rated voltage of 126kV, 252kV bending and breaking load of not less than 12kV and a climbing electrical ratio of 25 mm/kV, developed by the umbrella skirt, can withstand the highest operating phase voltage for a long time at 0.12 mg/2 salt density, i.e. the climbing electrical distance of insulator III, and can withstand the pollution of the IV salt equivalent.



Item Technical data
Rated voltage (KV)   7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)   32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)   60 75 125 185

Dispute bend (N) ≥10000
