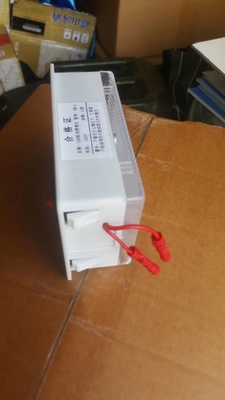

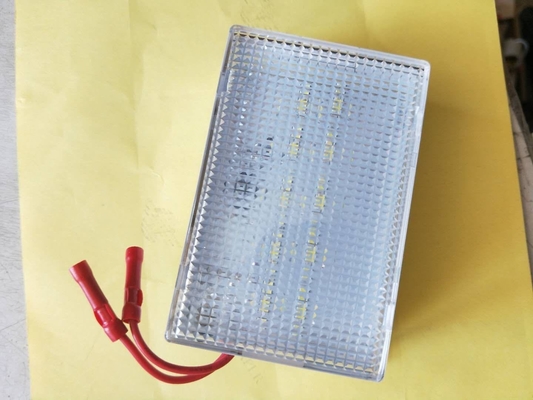

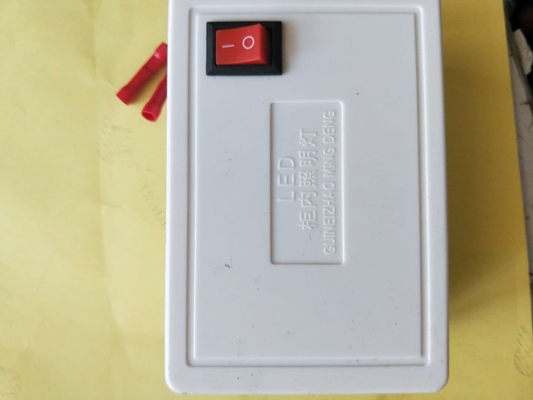

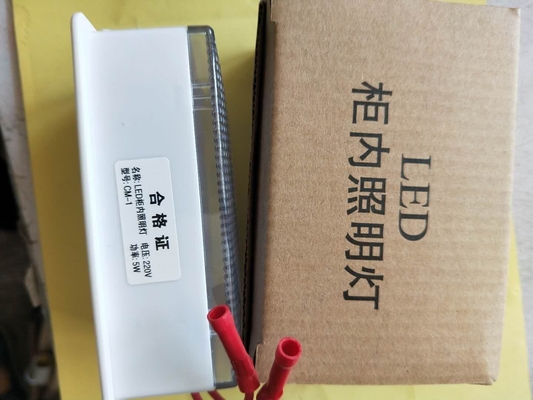

LED Cabinet lighting lamp for Indoor High Voltage Switchgears
| Place of Origin | WENZHOU |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | GM-1/LED |
| Minimum Order Quantity | 500 PCS |
| Packaging Details | Cartons |
| Delivery Time | 5 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 500000 PCS/Months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Plastic | Rated Power | 5W-40W |
|---|---|---|---|
| Size | 101*71 | Type | GM-1 |
| Rated Current | 16A | Work Voltage | 110V-220V |
Product Description
LED Cabinet lighting lamp for Indoor High Voltage Switchgears
High and High Structure and Equivalent Structure
The standard medium cabinet is high and low structure, front side height is 2300 mm, back side height is 2000 mm; And the contour structure is consistent. Gaodigui's busbar is arranged like a grain, and the instrument room is a separate structure, detachable. The contour cabinet busbar is arranged in a vertical zigzag, and the instrument room and the cabinet body are integrated. The same height structure has larger mounting space than the high and low structure, and is also convenient for production and operation maintenance.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 3.6 | 7.2 | 12 | 24 | 40.5 | ||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 25 | 32 | 42 | 68 | 100 | ||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | |||||||||||||
| Local discharge (pc) | |||||||||||||
| Power | 25W | ||||||||||||
