12kV High Voltage Indoor Vacuum Load Switch

China 12kV High Voltage Indoor Vacuum Load Switch supplier

Large Image :  12kV High Voltage Indoor Vacuum Load Switch

Product Details:

Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: FZN25-12/125T-31.5kA

Payment & Shipping Terms:

Minimum Order Quantity: 20PCS
Packaging Details: WOODENS
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 50000 PCS/Month
Contact Now
Detailed Product Description
Rate Voltage: 12kV Frequency Voltage: 42kV
Stable Current: 31.5kA/4s Current: 1250A
Life: 1000 Times



12kV High Voltage Indoor Vacuum Load switch FZN25 with switcgear

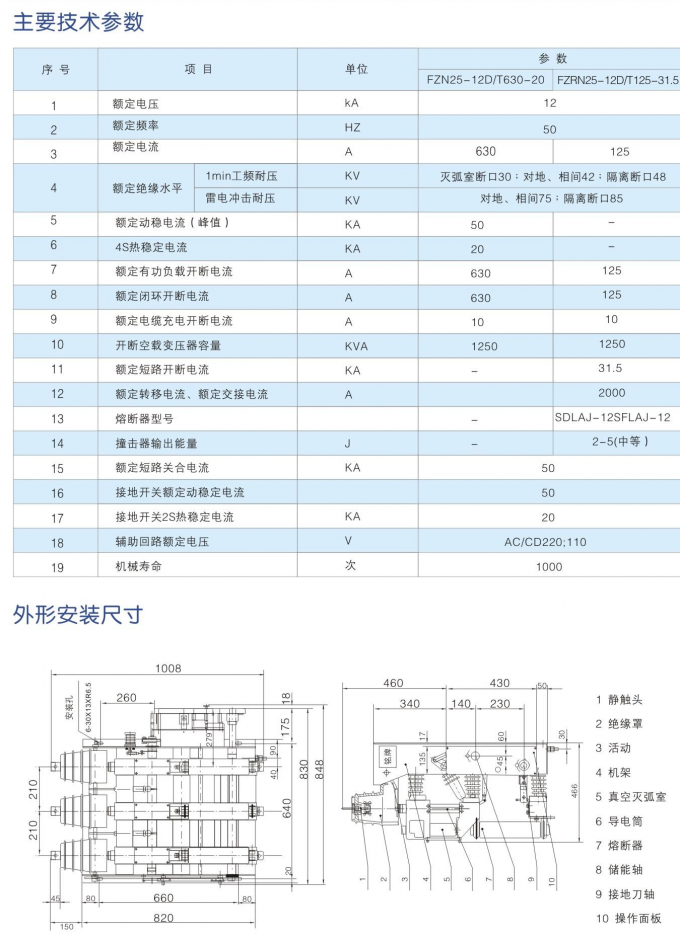

Item Technical data
Rated voltage (KV)     12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Local discharge (pc) ≤10
Earthquake Strength  8


12kV High Voltage Indoor Vacuum Load Switch

    The type FZN 25 high voltage indoor vacuum load switch and electrical comination is use for Three phase alternating current Concurrent 50HZ industrial power euipments , its can laod control and protect short current . Load switch is  open-close load , closed current , and charging cables current . Electrical comination can close any current . There can be use by hand and power . FZN25 is designed by drive type , light weight .

       Function:
A load switch is an electrical switch between an isolation switch and a circuit breaker. It has a simple arc extinguishing device that can cut the rated load current and a certain overload current, but can not cut the short circuit current.
Principle:
Under the action of the separation spring, the spindle rotates clockwise, on the one hand, the piston moves upwards through the crank slide mechanism, compressing the gas. On the other hand, two sets of four-rod drive system make the main gate knife open first, then push the arc cutter to open the arc contact, the compressed air in the cylinder through the vent to extinguish the arc.
