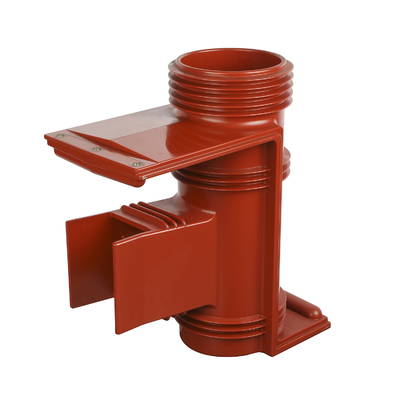

Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing

Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing
Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing

Large Image :  Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing

Product Details:
Place of Origin: WENZHOU
Brand Name: QIUPU
Certification: IEC
Model Number: CTH(10A)-40.5/ABB
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 5000 PCS/Month
Detailed Product Description
Type: High Voltage Epoxy Resin Insulator Material: Epoxy Resin
Rate Voltage: 40.5kV Frequency Voltage: 100kV
Creepage Distance: 810mm Flexural Strength: 10 KN
Current: 630A-4000A Usage: Switchgear Bushing
High Light:

high voltage bushing

,

high voltage post insulators

Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing



High Voltage Epoxy Resin Insulator Feature



1. electrical resistance

2. heat,fire,water resistance

3. low shrink



Details



1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.

Zhongzhigui is a handcart type(removable) switchboard such as KYN 28-12(GZS1) high pressure switchboard case, and a ring net cabinet is a fixed switchboard body;


2. Loop cabinets generally use load switches, and circuit breakers are generally used in the intermediate cabinets;


3. Different uses, Zhongzhigui is commonly known as KYN28 cabinet, handcart type high voltage switchgear, generally used to protect back-end Transformers, or other high pressure load. The ring net cabinet is mainly used for the distribution of high voltage power supply. The cabinet is mainly used for high pressure load protection. Ring net cabinet with air insulation, and a fully closed filling cabinet? In both cases, the air insulation is connected to a system using a common SF6 load switch through a copper row, while a fully closed filling tank has a special connection device in addition to the power inlet and outlet line, and the cabinet is connected to the cabinet in a complete gas chamber filled with SF6 gases.





Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(140*320) 40.5 50 98 ≤10 >810 ≥10 185
2 Reactance Insulators(140*320) 40.5 50 98 ≤10 >810 ≥10 185
3 Contactor box (1250A) 12 50 45 ≤10 >240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 >240 ≥8 80




Shielded High Voltage Epoxy Resin Insulator For Switchgear Bushing 0
