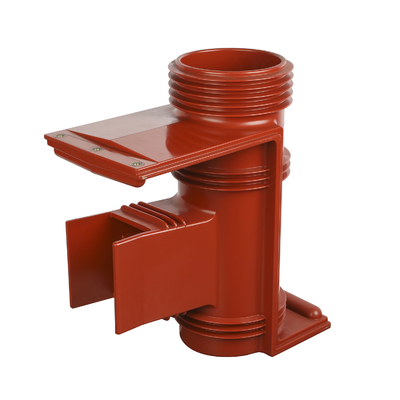

Electric Power High Voltage Epoxy Resin Insulator Contact Box APG Technique
| Place of Origin | WENZHOU |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | KYN61 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Cartons |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Voltage Epoxy Resin Insulator | Color | Brown |
|---|---|---|---|
| Rate Voltage | 40.5kV /36kV | Frequency Voltage | 98kV |
| Current | 630A-4000A | Flexural Strength | 10 KN |
| Usage | Electric Power | ||
| Highlight | high voltage bushing,high voltage post insulators |
||
Product Description
Electric Power High Voltage Epoxy Resin Insulator Contact Box APG Technique
Advantage
| 1.Superior quality,factory price,on-time delivery |
| 2.OEM,ODM are welcomed |
| 3.Any designs,colors are available for your favorite |
Introduction
The solid seal column uses the APG technique, the automatic pressure gel molding of epoxy resin. It can shorten the production cycle of epoxy insulation from ten hours to ten minutes, and can control exothermic effect well. It can compensate the shrinkage caused by curing reaction, and has excellent dimensional stability and high mechanical strength.
The maximum rated current is only 630A, and the circuit breaker can reach 3000A above(there are more than 4000A in foreign countries). The maximum rated current is only 630A, and the circuit breaker can reach 3000A or above(there are currently more than 4000A in foreign countries). The circuit breaker is usually short-circuit-protected. In case of overload, it takes a certain time(and can not be adjusted unless the internal fuse is replaced) to cut off the hot fuse of the internal fuse of the circuit, and the inner voltage switch is used to protect the overload of the device Or sulphur hexafluoride load switch.
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | ||||||||
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 5 | Wall bushing (260*395) | 40.5 | 50 | 98 | ≤10 | ≥840 | ≥10 | 185 |
We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
