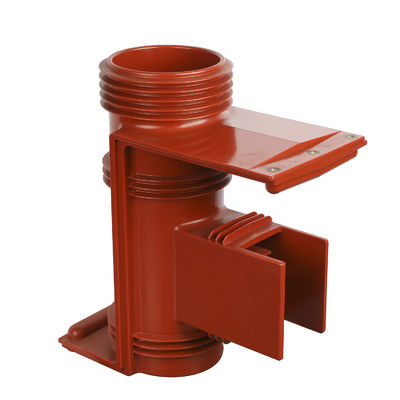

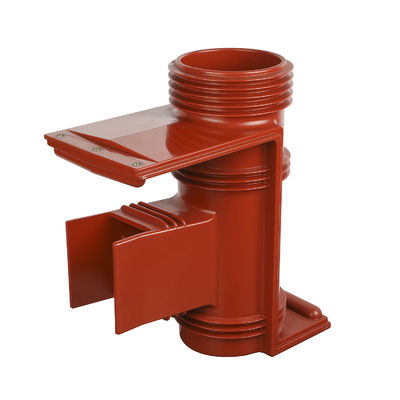

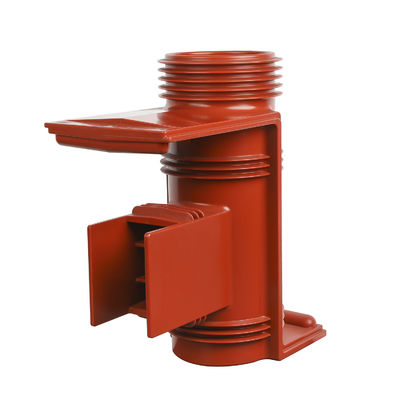

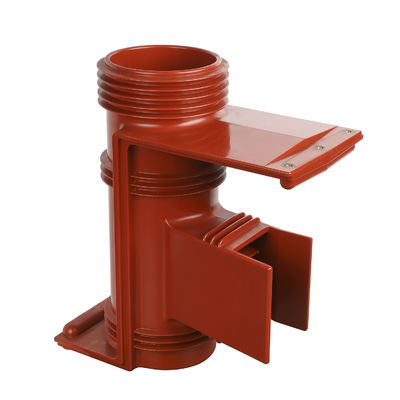

36kv Epoxy Resin VT Spout Bushing Insulation Contactor Box With Right And Left Outlet For Switch Cabinet
| Place of Origin | WENZHOU |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | CTH3-40.5/660/P2 |
| Minimum Order Quantity | 6 |
| Packaging Details | Cartons |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red | Material | Epoxy Resin |
|---|---|---|---|
| Rate Voltage | 36kV | Frequency Voltage | 98 KV |
| Creepage Distance | 810mm | Flexural Strength | 10 KN |
| Current | 1250A | Higth | 660MM |
| Highlight | 36kv Epoxy Resin Contactor Box,Switch Cabinet Epoxy Resin Contactor Box,VT Spout Bushing Insulation Contactor Box |
||
Product Description
Product advantages:
- APG(Automatic Pressure Gelation) technology for epoxy insulators, best choice!
- Premium epoxy resin, hardener and silicone powder, sufficient 3-speed mixing and vacuumization, eliminating bubbles
- Precise mold development, workers will strictly execute production technology requirement of solidifying time and curing time.
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | Insulators(140*320) | 40.5 | 50 | 98 | ≤10 | ＞810 | ≥10 | 185 |
| 2 | ||||||||
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
2. Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.
3. Mainly used in systems below 1000 KVA Transformers. The ring net ark originally serves as the ring net connection, this is the ring net ark name reason. Because it is the use of the ring network, it only needs to be divided rated current, short circuit current division does not need it(do not understand please consider carefully). So the loop cabinet just needs a load switch, not a fuse.
