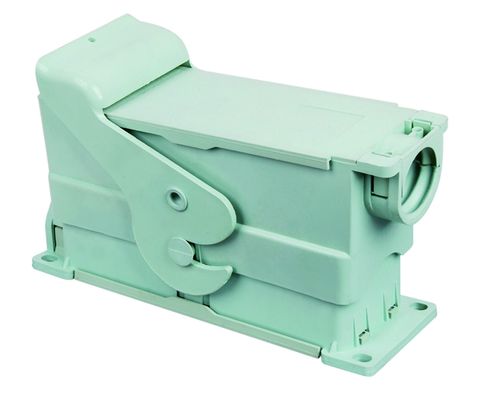

Socket Plug Plastic Contact For Vacuum Circuit Breaker

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number JZ-58P
Minimum Order Quantity 100 PCS
Packaging Details CARTONS
Delivery Time 6 Days
Payment Terms T/T, Western Union
Supply Ability 5000/MONTH
Product Details
Material Plastic Color Black/Gray
Pins 25-58 Type F+M
High Light

high voltage switchgear components

,

switchgear accessories

Leave a Message
Product Description

     JZ-58 socket plug plastic contact with vacuum circuit breaker



Its performance match with GB3960-1991's 3kV-40.5kV switchgear and power euipment . Fit with vacuum circuit breaker VS1 , VCB , VD4 and KYN28-12 switchgear .

Air plug can also be called plug seat, widely used in various electrical circuits, acting as a connection or disconnect circuit. Improving the reliability of air plugs is first and foremost the responsibility of manufacturers. However, because of the wide variety of air plugs, the correct selection of air plugs is also an important aspect to improve the reliability of air plugs. It is only through the joint efforts of manufacturers and users that the functions of the air plug can be maximized.
There are different types of air plugs. There are high frequency air plugs and low frequency air plugs by frequency .


Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥1000






We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
