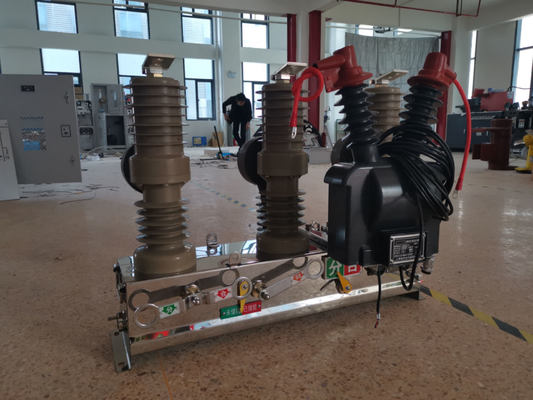

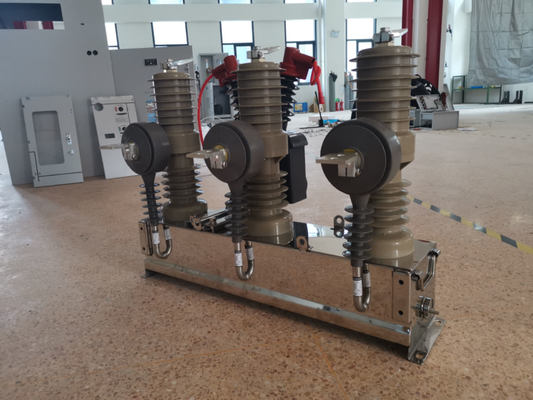

ZW32-24kV Three Phase Outdoor Vacuum Type Circuit Breaker High Voltage

Place of Origin WENZHOU
Brand Name QIUPU
Certification ISO
Model Number ZW32-24
Minimum Order Quantity 10PCS
Packaging Details WOODENS
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material S304 Rate Voltage 24 KV
Frequency Voltage 65 KV Rate Current 630A-1250A
Frequency Current 50kA Weight 115KGS
High Light

indoor vacuum circuit breaker


vacuum type circuit breaker

Leave a Message
Product Description

ZW32-24kV High Voltage Outdoor Vacuum Circuit Breaker with outdoor power equipment



ZW32 outdoor column vacuum break(below) rated voltage 12KV, three-phase exchange 50Hz outdoor high pressure distribution equipment. It is mainly used for power system load current, overload current and short circuit current. It is suitable for protection and control in power distribution system of substations and industrial and mining enterprises, and more suitable for construction and renovation of urban and rural power grid and frequent operation.



The circuit breaker may be equipped with a three-phase isolation switch, which is clearly visible under the isolation switch separation state, and has a fail-safe interlock device with the circuit breaker body. The circuit breaker may only be operated when the isolation knife is fully closed or fully divided.



A switching device capable of breaking and carrying current under normal loop conditions and of carrying and breaking current under abnormal loop conditions within a specified time.
It has the function of overload, short circuit and undervoltage protection, and has the ability to protect the line and power supply.


Item Technical data
Rated voltage (KV)       24
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)       68
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)       125
Life ≤10000
weight 115 KGS

ZW32-24kV Three Phase Outdoor Vacuum Type Circuit Breaker High Voltage 0
