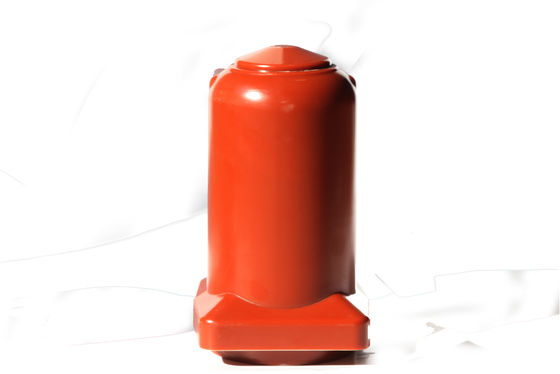

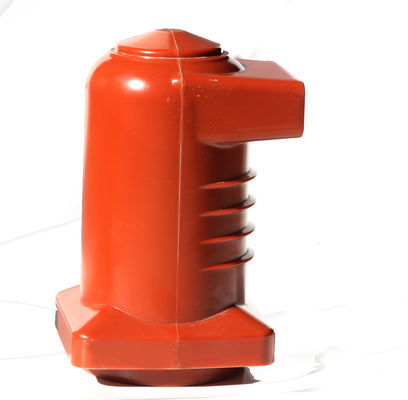

Indoor 630A 10kV Epoxy Resin Insulator Spout Bushings Switchgear Components

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CHN3-12Q/150-630A
Minimum Order Quantity 120 PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 50000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Epoxy Resin Rate Voltage 10 KV
Frequency Voltage 42 KV Current 630A
Creepage Distance 240mm Flexural Strength 8 KN
Color Red/Brown
High Light

epoxy resin cast insulators


cast resin insulator


Epoxy Resin Insulator 630A 10kV

Leave a Message
Product Description


Indoor 630A 10kV Epoxy Resin Insulator Spout Bushings Switchgear Components







          1. The solid seal column uses the APG technique, the automatic pressure gel molding of epoxy resin. It can shorten the production cycle of epoxy insulation from ten hours to ten minutes, and can control exothermic effect well. It can compensate the shrinkage caused by curing reaction, and has excellent dimensional stability and high mechanical strength. Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.

         2. The APG process includes three processes: pre-mixing, automatic pressure gel, and solidification after molding.

         3. APG process equipment mainly includes mould, Pre-mixing capacity, mobile injection special pressure vessel, full hydraulic automatic pressure gel molding machine, air compressor, after solidification need oven and necessary auxiliary machine.

In pouring, pouring material is the key. It has a great influence on the reliability and stability of cemented pole. For example, Xiamen Huazhong Electric Switching Co., Ltd. uses the resin materials of Vantico, Switzerland, and adopts different formulas according to different current, etc. to meet different working conditions. For example-40 ℃-250 ℃ .



Item Technical data
Rated voltage (KV)   7.2 12
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV)     42
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV)     75
Rate Current 630A
Dispute bend (N) ≥10000
