HY5WZ series 6kv to 110kv Metal Oxide Surge Arrester (gapless lightning arrester)




 2. Environmental Conditions


3. Parameters



The zinc oxide arrester is the most advanced over-voltage protector in the world, Due to make the risistor disc of core componet mainly adopt zine oxide arrester. Compared with the conventional silicon carbide arrester, this presciption of the product improves gr-eatly the volt-Ampere characterisics of the resistor disc and increased through-current capability at over-voltage so as to dring a rad-ical changes for the characteristics of the arresters. Under the circumstance of normal operating voltage, the current through the arrester is just on microampere degree, When suff-ered from over-voltage, the arrester's excellent nonlinear characteristics will make the current through the arrester incrase to several thousand amperse, while the arrester will be under the circulating state and release over-voltage energy so as to protecting the power transmission equipments against the demage caused by th over-voltage.

Usage & Feature
The Zinc Oxide lighting arrester protects the electrical equipments in AC power systems against being damaged by atmos-pheric over-voltage and operational over-voltage.


Pollution resistance, stable performance , best of creepage distance , aunti-fouling .

The switch room consists of various functional circuits(including grounding switches and load switches) sealed in the metal casing and busbar between them. The shell is made of 3-inch cold rolled steel plate(or unembroidered steel plate) welded. Each functional loop includes a load switch and a grounding switch. The load switch is composed of a vertical moving contact system and a static contact at the lower end. When the switch is closed, the contact moves downward and the load switch is connected. The ground switch is composed of a moving contact knife and a static contact knife. The upper and rear of the switch room are provided with 4 rectangular assemblers, and the front of the loop cabinet is provided with observation Windows. An explosion-proof device is installed at the rear of the ring cabinet.

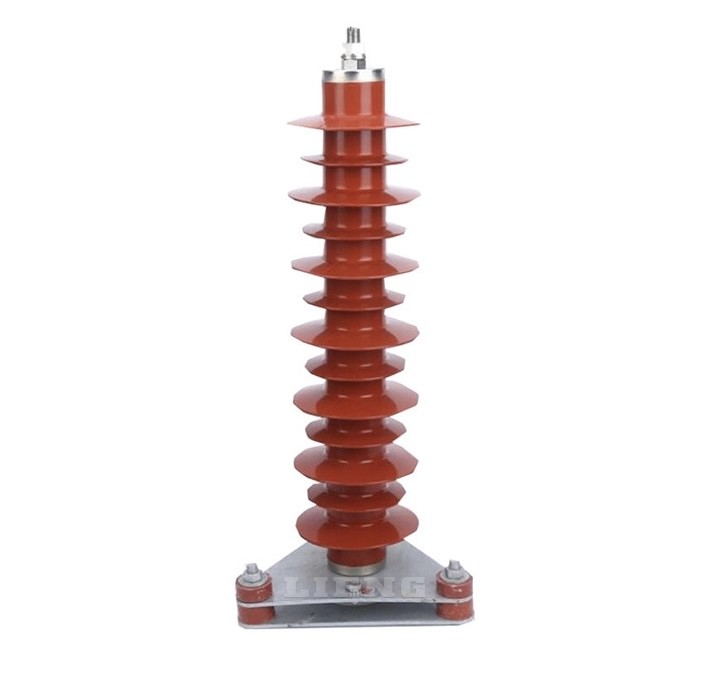

110kv Metal Oxide Surge Gapless Lightning Arrester 0110kv Metal Oxide Surge Gapless Lightning Arrester 1


parameter: It is used to limit the overvoltage hazard of the parallel capacitor bank during operation of the vacuum switch and the oil-less switch, protect the capacitor bank from damage and absorb the energy of overvoltage.
Lightning arrester model System rated voltage Rated voltage of arrester Continuous operating voltage DC reference voltage (U1mA) Residual voltage under steep wave impulse current Residual voltage under lightning impulse current Square wave flow capacity (2ms) High current impact tolerance Drawing number
kV(r.m.s) ≮kV ≯kV A kA
HY5WR-5/13.5 3 5 4.0 7.2 13.5 10.5 400 65
HY5WR-10/27 6 10 8.0 14.4 27.0 21.0 400 65 Figure 4
HY5WR-17/45 10 17 13.6 24.0 45 35.0 400 65 Figure 5
HY5WR-51/134 35 51 40.8 73.0 134 105 400 100
HY10WR-51/134* 35 51 40.8 73.0 134 104 600 100 Figure10,11
HY10WR-54/134* 35 54 43.2 75.0 134 105 600 100
HY5WR-48/125* 35 48 38.4 70.0 125 102 600 100
HY5WR-51/134* 35 51 40.8 73.0 134 104 800 100
Note: "*" is the flow capacity of large square wave.

 We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
