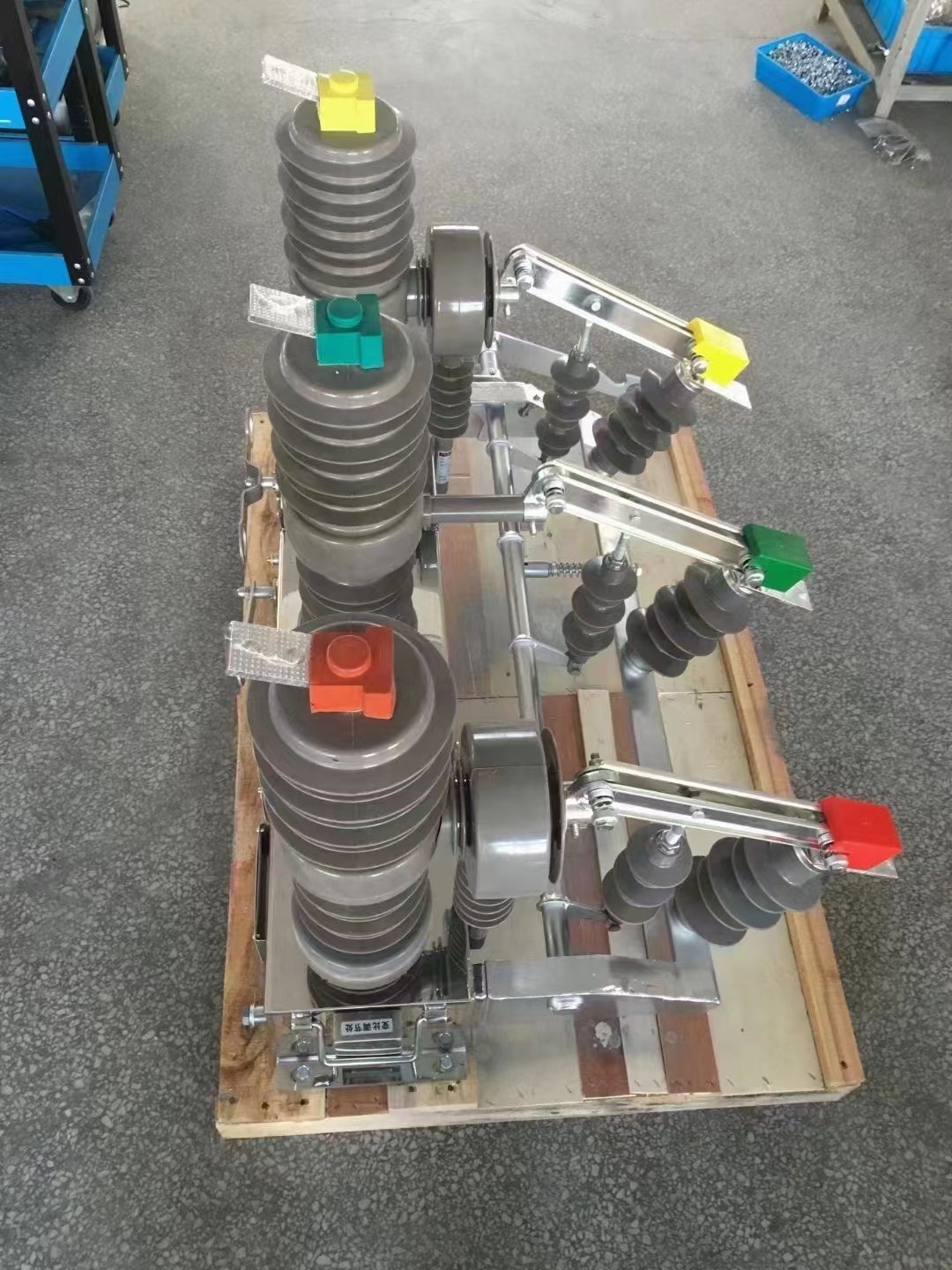

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker

  • Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker
  • Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker
  • Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker
  • Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker
Place of Origin wenzhou
Brand Name QIUPU
Certification IEC
Model Number ZW32-12FG
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details wooden
Delivery Time 7 days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Zhejiang, China Type High Voltage
Model Number Zw32-12 Rated Voltage 12V
Function Overcurrent Protection And Ovp Certification ISO9001-2000
Working Ambient Temperature Mperature: -50 ~ +50
Highlight

Auto Recloser Circuit Breaker

,

12kv Remote Control Circuit Breaker

,

Multifunctional Vacuum Circuit Breaker
Leave a Message
Product Description

Auto Recloser Circuit Breaker ZW32-12F/T630-25 12kv Remote Control /High Voltage AC Vacuum Circuit Breaker Auto Recloser

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 0
ZW32-12F watchdog dog intelligent outdoor vacuum circuit breaker(hereinafter referred to as demarcation circuit breaker) is a new product developed by our company independently. The demarcation circuit breaker is a multi-functional intelligent device product integrating vacuum circuit breaker, demarcation circuit breaker and segmental device.Boundary between main configuration by vacuum circuit breaker ontology, intelligent controller, the external boundary type voltage transformer (note: in the distribution network automation ring line optional PT) on both sides of three parts, the products are widely used in 10 kv city of ring network, rural power distribution network overhead line segment isolating switch, contact switch, can be a ring line load allocation automatic switching device, in the big user power supply branch circuit can be used as a dividing line switch (commonly known as watchdog), feeder overhead distribution network and used
as the boundary between the breaker section, boundary between vacuum circuit breaker with remote management mode, protection control function and communication function.It can reliably judge and detect the zero-sequence current and interphase short-circuit fault current in the boundary, and realize the automatic removal of single-phase grounding fault and interphase short-circuit fault.

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 1

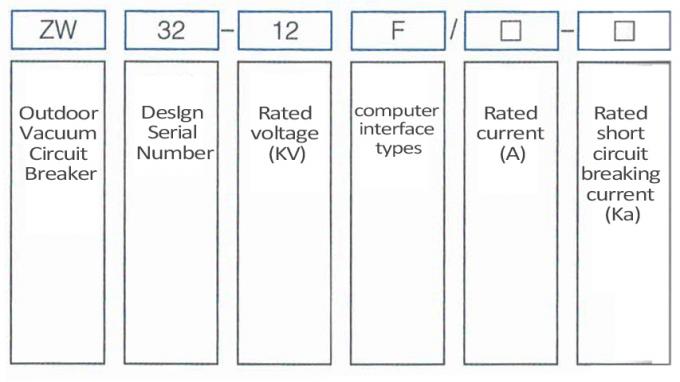

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 2

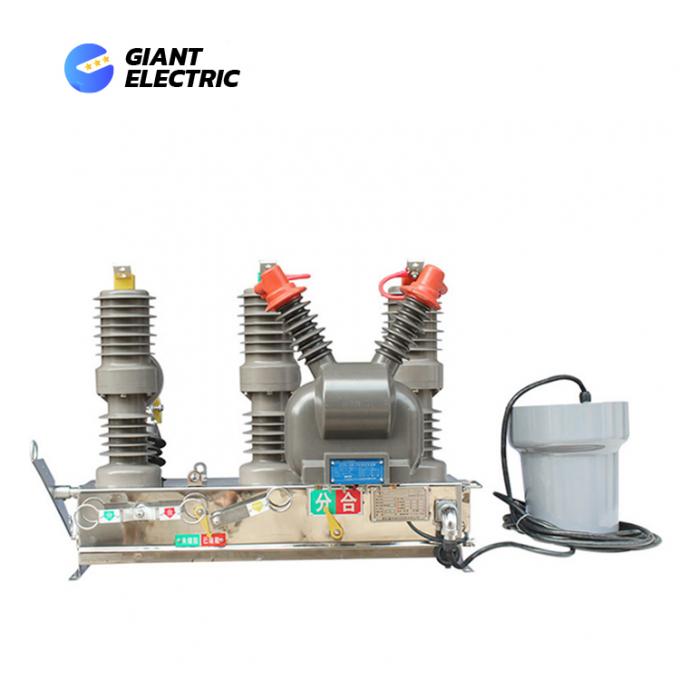

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 3

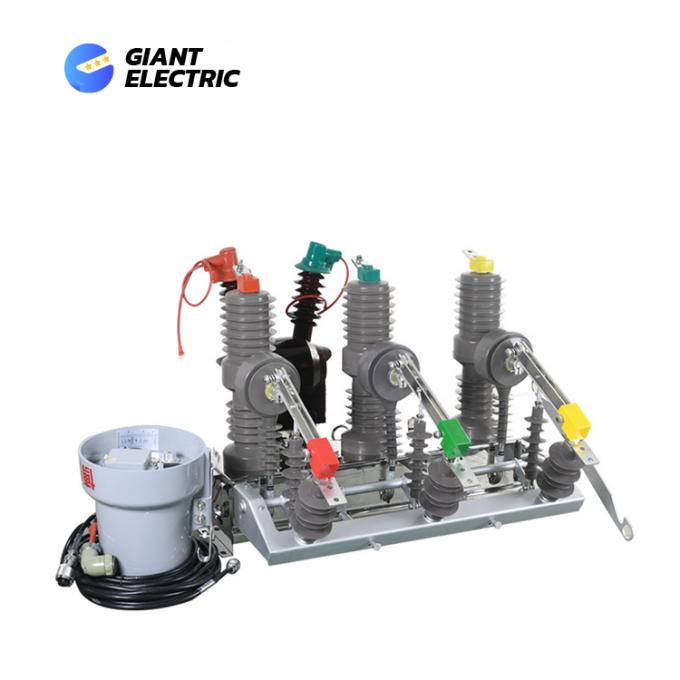

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 4

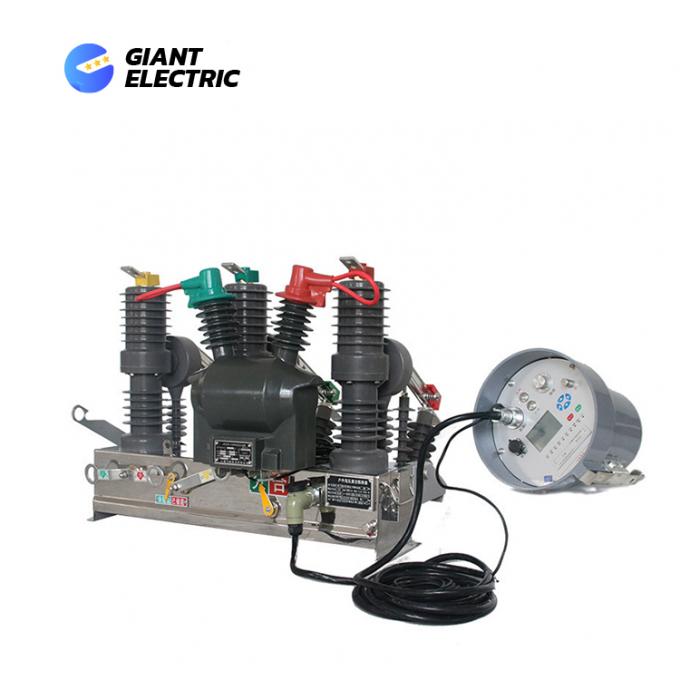

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 5

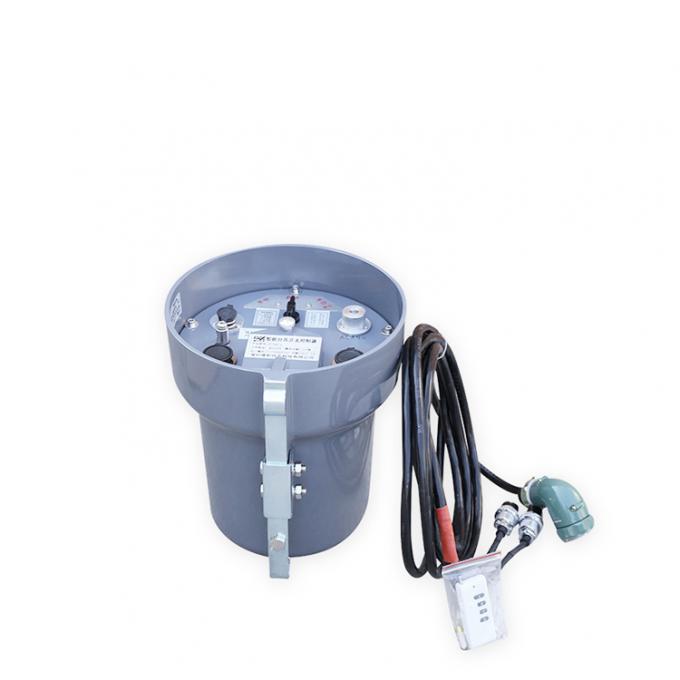

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 6
Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 7
serial number
project
units
data
1
The rated voltage
KA
10
2
Maximum operating voltage
KA
12
3
Rated insulation level
Voltage withstand 1min power frequency
Do try
KA
42
Try the wet
KA
34
Lightning shock withstand voltage
KA
75
4
Rated current
A
630
5
Rated short circuit breaking current
KA
20
6
Rated capacitor bank breaking current
A
400/630
7
Rated sequence of operation

0-0.3s-C0-15s-C0-15s-C0
8
Rated short circuit breaking current breaking times
next
20
9
Rated short circuit closing current (peak)
KA
50
10
Rated peak tolerable current
KA

11
Rated short-time tolerable current
KA
20
12
Rated short circuit duration
S
4
13
Full break time
ms
≤100
"Break time
(Shunt blurt)"
Maximum operating voltage
ms
15~50
Rated operating voltage
ms
15~50
Minimum operating voltage
ms
30~60
Closing time
ms
25~60
14
Mechanical life
next
10000
15
Rated operating voltage
V
AC220
16
Operating mechanism
A
CT37-D spring mechanism
17
Allowable wear thickness of moving contact
mm
3
18
The weight of the
kg
110(135Shuttered Fuse)
19
Rated input power of energy storage motor
w
≤250
20
Over-current stripper
Rated current
A
5
Tripping accuracy
%
±10

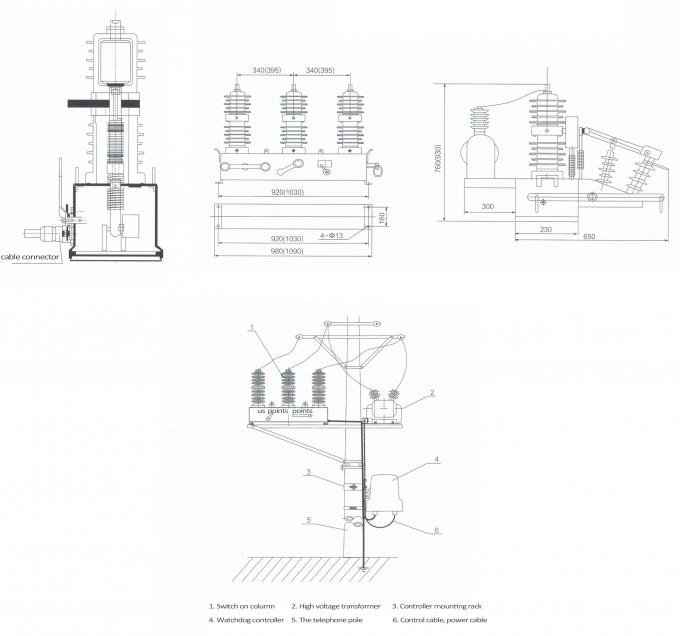

Intelligent Auto Recloser Circuit Breaker 12kv Remote Control Circuit Breaker 8
