550mm Indoor Vacuum Circuit Breaker 12kV/630A High Voltage

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number ZN63(VS1)-12/630A/550mm
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woodens
Delivery Time 7 Days
Payment Terms Western Union, T/T, , D/P, Western Union
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name VCB Circuit Breaker Voltage 12kV
Rate Current 2500A Space Current 31.5kA-40kA
Wide 550mm Life 20000 Times
High Light

550mm Indoor Vacuum Circuit Breaker


Vacuum Circuit Breaker 12kV


Indoor 12kv Circuit Breaker

Leave a Message
Product Description

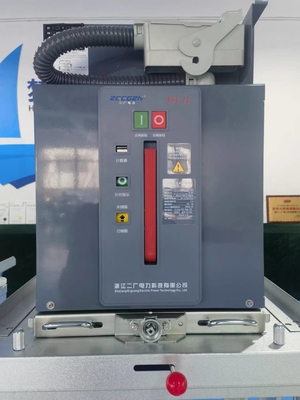

550 mm  Indoor Vacuum Circuit Breaker 12kV/630A High Voltage



        VS1 (ZN63)  vacuum circuit breaker is suitable for reclosing operation and has high operation reliability and service life.


        VS1 (ZN63) vacuum circuit breaker(general type) uses vertical insulators to protect against climate effects; And in the maintenance and maintenance aspect, usually only need to do the operation between or  cleaning or lubricating.

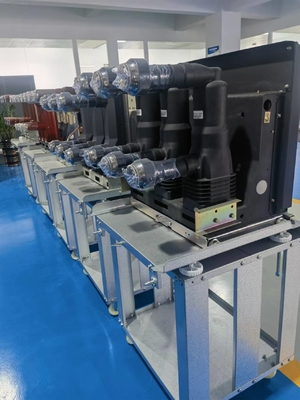

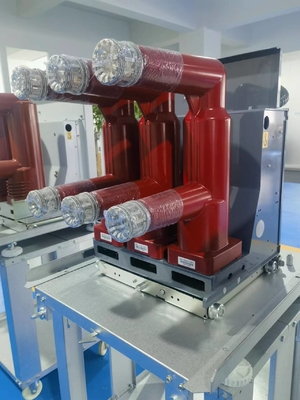

       VS1 (ZN63) vacuum circuit breaker(pole type) adopts solid insulation structure-integrated seal pole, realized maintenance free.


        The magnetic field produced by the coil and the magnetic field produced by the permanent magnet is superimposed and synthesized by the magnetic field. The magnetic core, together with the driving rod fixed on it, is operated by the synthetic magnetic force and the switch body is turned on and off at the specified speed. This mechanism is called a two-bit bistable structure because the moving iron core can be maintained without any energy consumption at the two ends of the journey. In the traditional electromagnetic mechanism, the moving core is kept at one end of the journey by the action of a spring, while at the other end of the journey, it is protected by a mechanical latch or electromagnetic energy. From the above, the permanent magnet actuator is a special combination of electromagnet and permanent magnet to achieve the traditional circuit breaker operating mechanism of all functions: permanent magnet instead of traditional .




Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥1000
