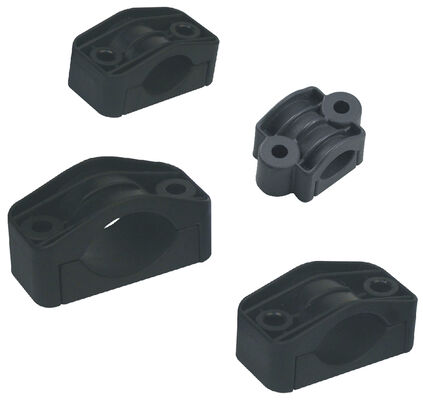

Plastic Cable Clamp For Indoor High Voltage Switchgear Equipment

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number K13-K100
Minimum Order Quantity 500 PCS
Packaging Details Cartons
Delivery Time 5 Days
Payment Terms T/T, Western Union
Supply Ability 500000 PCS/Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material PP Size 13-10mm
Type Clamp
High Light

Switchgear Plastic Cable Clamp


10mm Plastic Cable Clamp


Switchgear Equipment Plastic Cable Clamp

Leave a Message
Product Description

Plastic Cable Clamp For Indoor High Voltage Switchgear Equipment


             Middle cabinet, all known as metal armor in the case of a shift switch equipment. It is a high voltage distribution unit with a maximum operating voltage of 3.6 / 7.2 / 12kV and is an indoor distribution unit of a three-phase AC 50 Hz single bus segment system or a double bus segment system. It is used to receive and match the network electricity of 3.6-12kV, and to control, protect, monitor and measure the electric circuit. Medium type switchgear is mainly used for power plant, small and medium power generator, power substation of power system, power supply, power distribution of industrial and mining enterprises, and starting of large high voltage motor.



            Medium Cabinet full name is the Armoured Installed Switchgear, which moves the medium metal switch with a three-tier structure, with a bus and dashboard(isolated from each other), a circuit breaker room in the middle and a cable room in the lower. Because the circuit breaker is in the middle layer, so it is called the armor type to move the type of metal closed switch equipment, short for the cabinet.

Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc)
Dispute bend (N)

        Plastic Cable Clamp For Indoor High Voltage Switchgear Equipment 0
