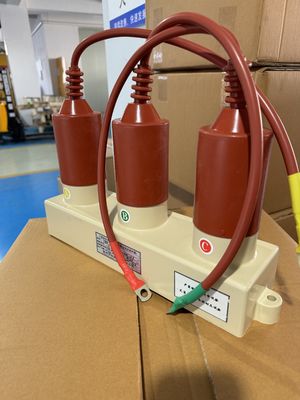

5kV Overvoltage Protector Zinc Oxide Surge Arrester With Indoor Switchgear

Place of Origin WENZHOU
Brand Name QIUPU
Certification ISO
Model Number TBP-5
Minimum Order Quantity 3PCS
Price USD45-USD65
Packaging Details CARTONS
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 500000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
System Rated Voltage 5kV Rated Frequency 50Hz
Inrush Current 42.5A Arrester Rated Voltage 5kV
DC Reference Voltage 25kV Continuous Running Voltage 15kV
Square Wave Flow Capacity 75A
High Light

5kV Zinc Oxide Surge Arrester


50Hz Zinc Oxide Surge Arrester


Lightweight Zinc Oxide Lightning Arrester

Leave a Message
Product Description

Supply zinc oxide surge arrester HY5WS-17-50 composite metal oxide surge arrester HY5WS series


Small size, light weight, collision resistant, flexible installation .

Special structure, no gap, good sealing, corrosion resistance.


Pollution resistance, stable performance , best of creepage distance , aunti-fouling .

The switch room consists of various functional circuits(including grounding switches and load switches) sealed in the metal casing and busbar between them. The shell is made of 3-inch cold rolled steel plate(or unembroidered steel plate) welded. Each functional loop includes a load switch and a grounding switch. The load switch is composed of a vertical moving contact system and a static contact at the lower end. When the switch is closed, the contact moves downward and the load switch is connected. The ground switch is composed of a moving contact knife and a static contact knife. The upper and rear of the switch room are provided with 4 rectangular assemblers, and the front of the loop cabinet is provided with observation Windows. An explosion-proof device is installed at the rear of the ring cabinet.


Zinc Oxide Arrester HY5WS-17/50(3 pcs/set)

System Rated Voltage: 10kV
Rated Frequency: 50Hz
Inrush Current: 42.5A
Arrester Rated Voltage: 17kV,
DC reference Voltage: 25kV
Continuous Running Voltage: 13.6kV
Square Wave Flow capacity: 75A
It is used to protect power transformers, switch cabinets, box-type substations, power cable outlets, pole oil switches and other power distribution equipment with corresponding voltage levels from damage from the atmosphere and operating overvoltages
避雷器型号 系统额
kV(r.m.s) ≮kV ≯kV A kA
3 3.8 2.0 7.5 7.3 15 12.8 75 40 图2
HY5WS-5/15 5 4.0 8.0 17.3 15 12.8 100 65
HY5WS-7.6/30* 6 7.6 4.0 15.0 34.5 30 25.5 75 40 图3
HY5WS-10/30 10 8.0 15.0 34.5 30 25.5 100 65
HY5WS-12.7/50* 10 12.7 6.6 25.0 57.5 50.0 38.5 75 40 图4
HY5WS-17/50 17 13.6 25.0 57.5 50.0 38.5 100 65

5kV Overvoltage Protector Zinc Oxide Surge Arrester With Indoor Switchgear 0

5kV Overvoltage Protector Zinc Oxide Surge Arrester With Indoor Switchgear 15kV Overvoltage Protector Zinc Oxide Surge Arrester With Indoor Switchgear 2

We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
