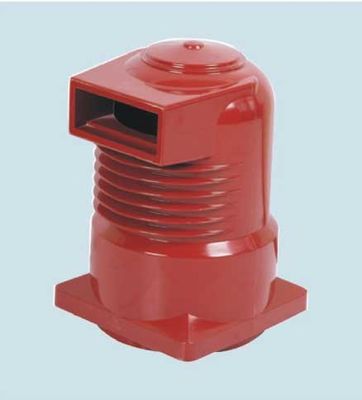

Isolating Contact Spout Bushing 24Kv/4000A With 5 Holes

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CHN3-24kV-252/4000A
Minimum Order Quantity 100PCS
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 100000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Epoxy Resin , Casting Resin Color Red/Brown

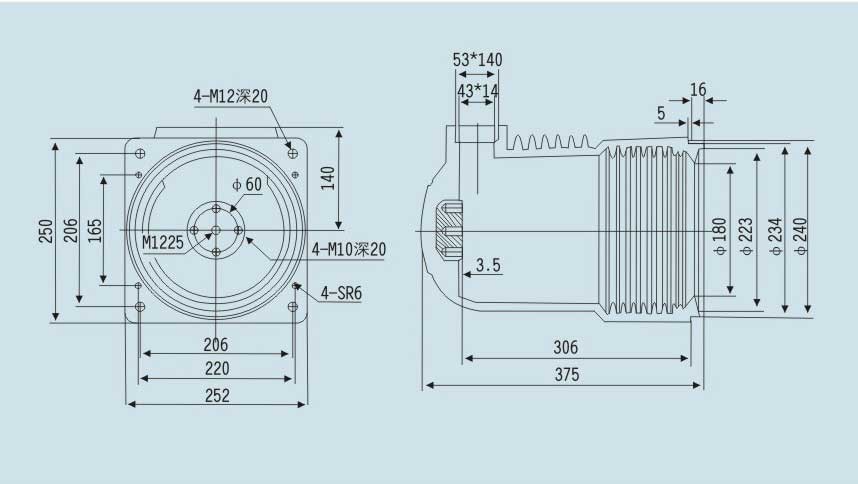

Higth 375mm Creppage Distance 480mm
Rate Voltage 24kV Frequency Voltage 65kV
Flexural Strength 10kN
High Light

4000A Isolating Contact Spout Bushing

,

5 holes Isolating Contact Spout Bushing

,

24Kv Isolating Contact Spout Bushing

Leave a Message
Product Description

4000A 24kV HV Spout Epoxy Resin Insulator , Epoxy Resin Cast Bushing with 5 holes



Description:





The contact box is the pressure gel molding structure of epoxy resin APG process, which is used for various kinds of handcart type switchgear, acting as insulation isolation and connection transition.The contact box is formalised by ecoxy with APG technologies, it is used for integration and conversion of Various switch trucks. The rated voltage sulfoxide according to the wall-piercing casing shall not be lower than the rated voltage of the grid in which it is located. When there is ice and snow, 3 ~ 20kV outside the wall casing should be selected a higher voltage products. For 3 ~ 6 kV, it is also possible to adopt products that increase the two-stage voltage.



Specification:



Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥1000




Isolating Contact Spout Bushing 24Kv/4000A With 5 Holes 0





We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .

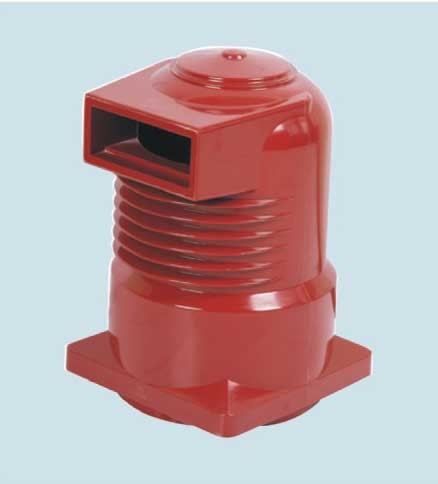

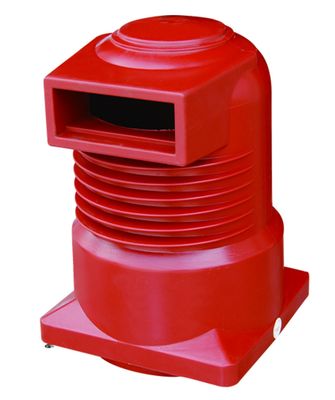

Isolating Contact Spout Bushing 24Kv/4000A With 5 Holes 1Isolating Contact Spout Bushing 24Kv/4000A With 5 Holes 2
